Mounting the Anybus
‐module
20 A02590_04_E00_00 HBM: public TIM40
► Push the module, with the flat side facing down, carefully into the housing.
When the module protrudes approx. 1 cm from the housing, you will feel a
resistance (see Fig. 8.3). The module will now be centered by the side
grooves. Carefully push the module into the housing until it lies flush.
approx. 1 cm

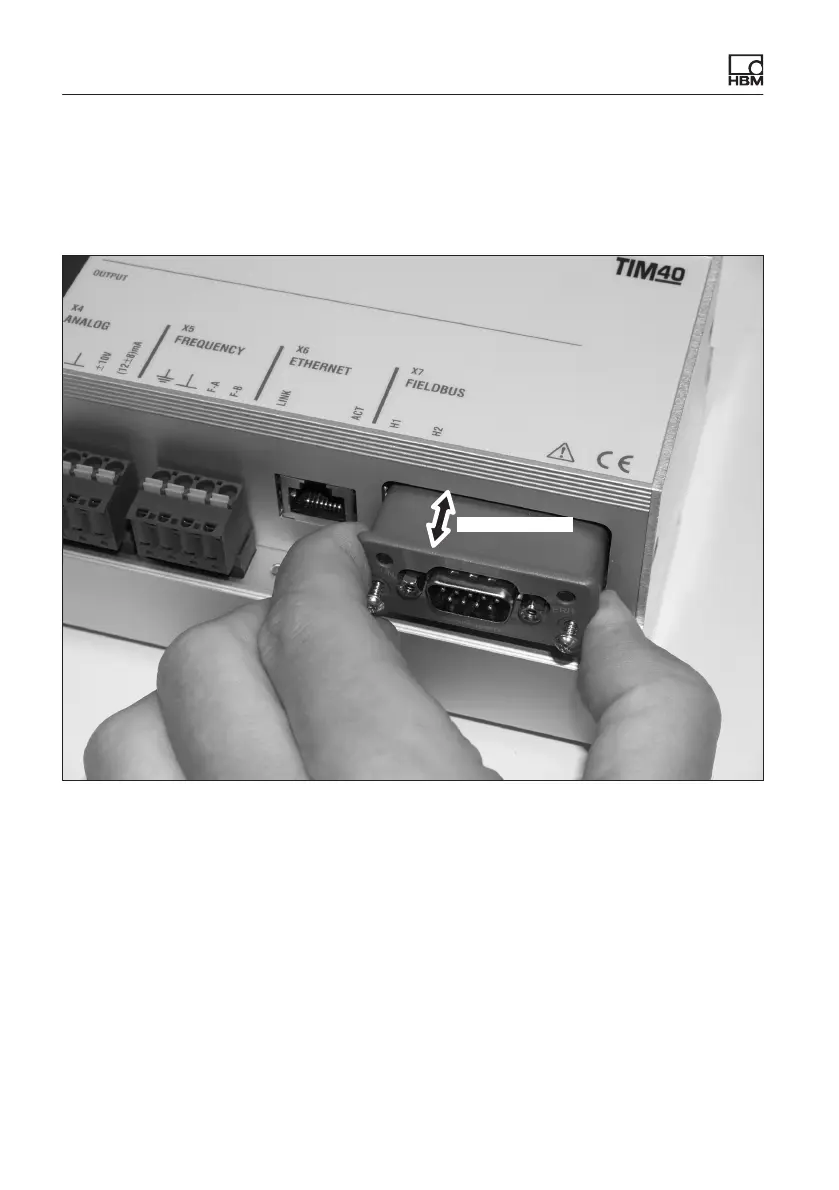

Fig. 8.3 Mounting the module
► Tighten both fastening screws (Torx
8; 0.25 N@m).
