Interface description
46 A02590_04_E00_00 HBM: public TIM40

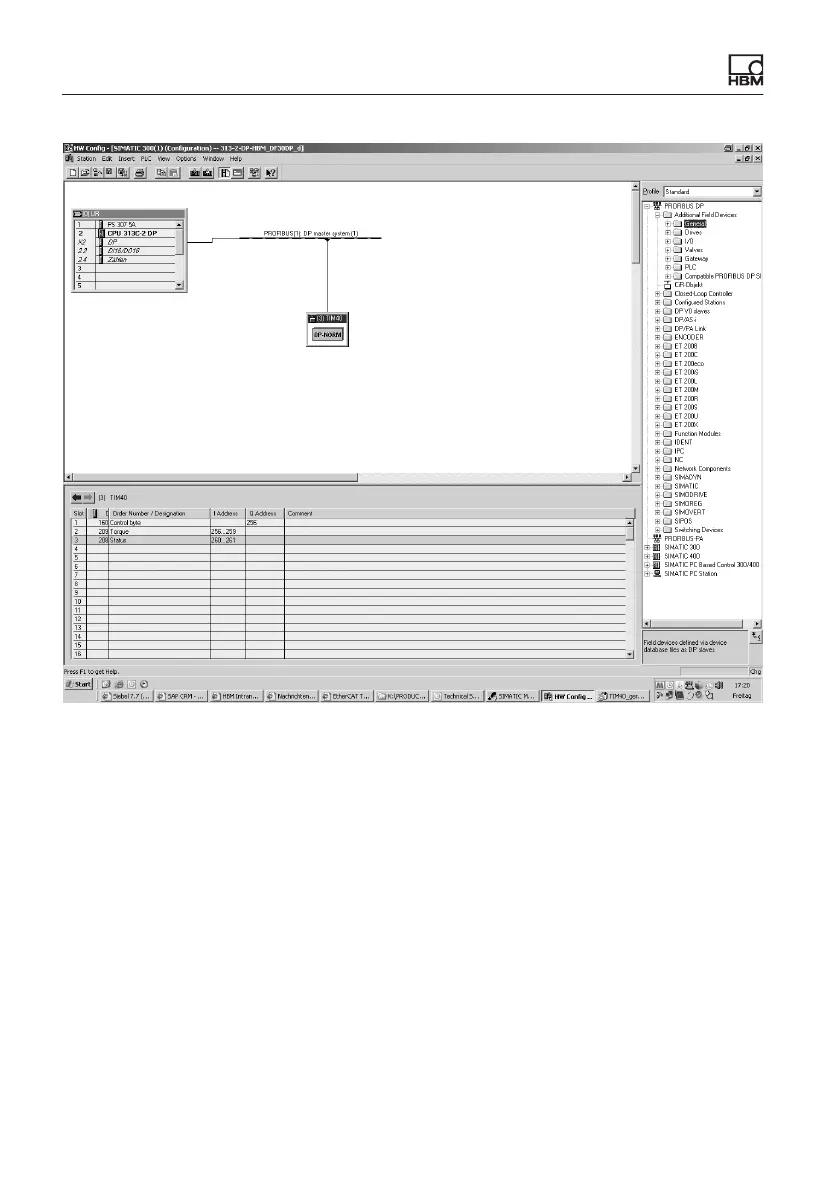

Fig. 13.3 TIM40 configuration
The TIM40 control bits must be explicitly enabled in the Profibus parameteriza
tion.
Notes for Simatic S7 PLC users:
S To transmit consistent data, you must use the special function blocks
SFC14 to read and SFC15 to write.
S With S7 3xx, a maximum of 32 bytes of consistent data can be transmitted.
The TIM40 allows the following cyclic data to be transferred via Profibus DP:
Input data (sent from the TIM40 to the PLC):
S 32 Bit measured values (torque low‐pass 1, torque low‐pass 2; parameteriz
able via the web server)
