CD 2301 Order No. BA 92-12-0231A Issue 05.01.10 19

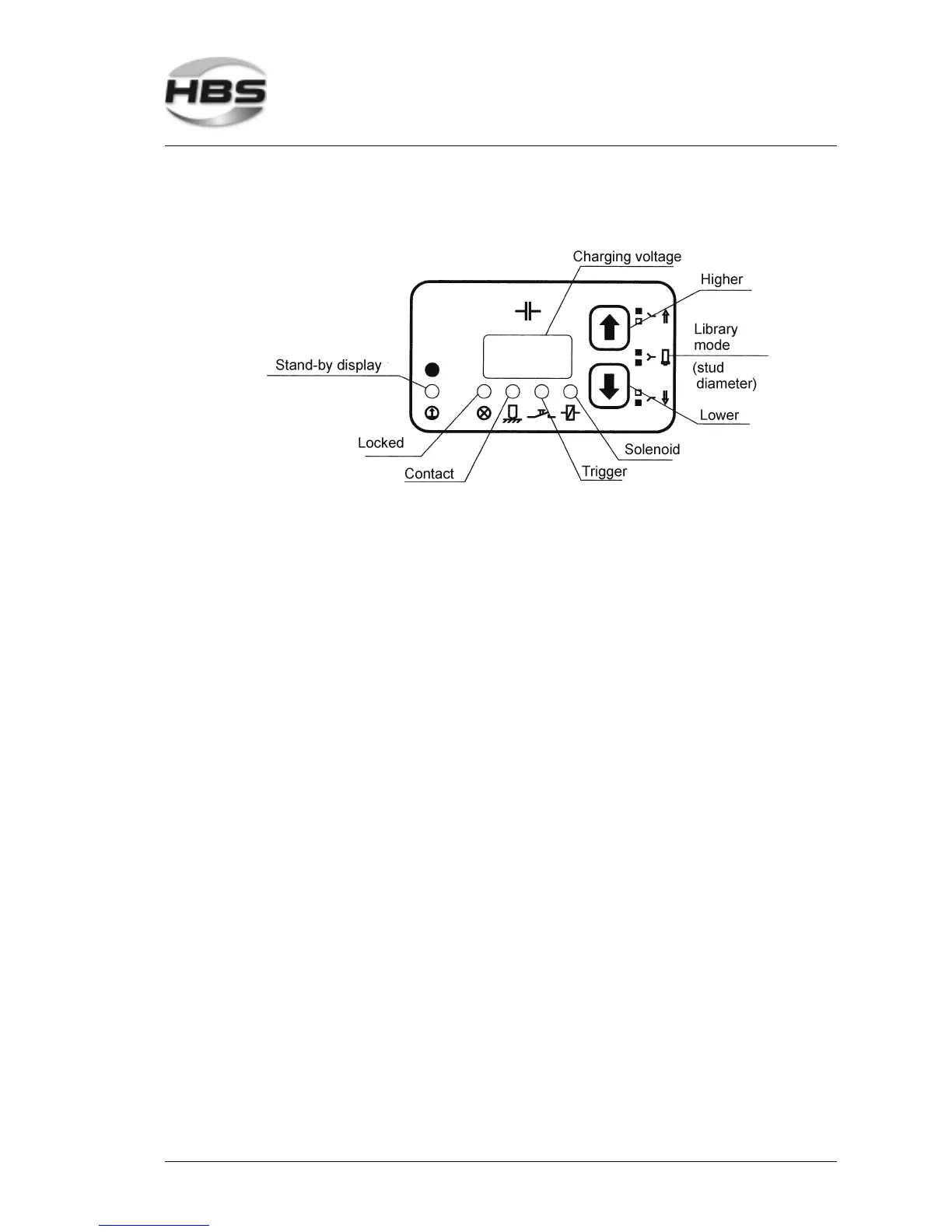

4.2 Keyboard and Display
Stand-by display green = Ready for welding
Stand-by display red = Charging the capacitor battery
How to use displays and keys is described in section 5.6.
4 Function
4.2 Keyboard and Display
