3.0 Handling HeartWare
™
HVAD
™
System Components
3.7 Setting Up Your HeartWare
™
HVAD
™
System Carrying Cases
(continued)

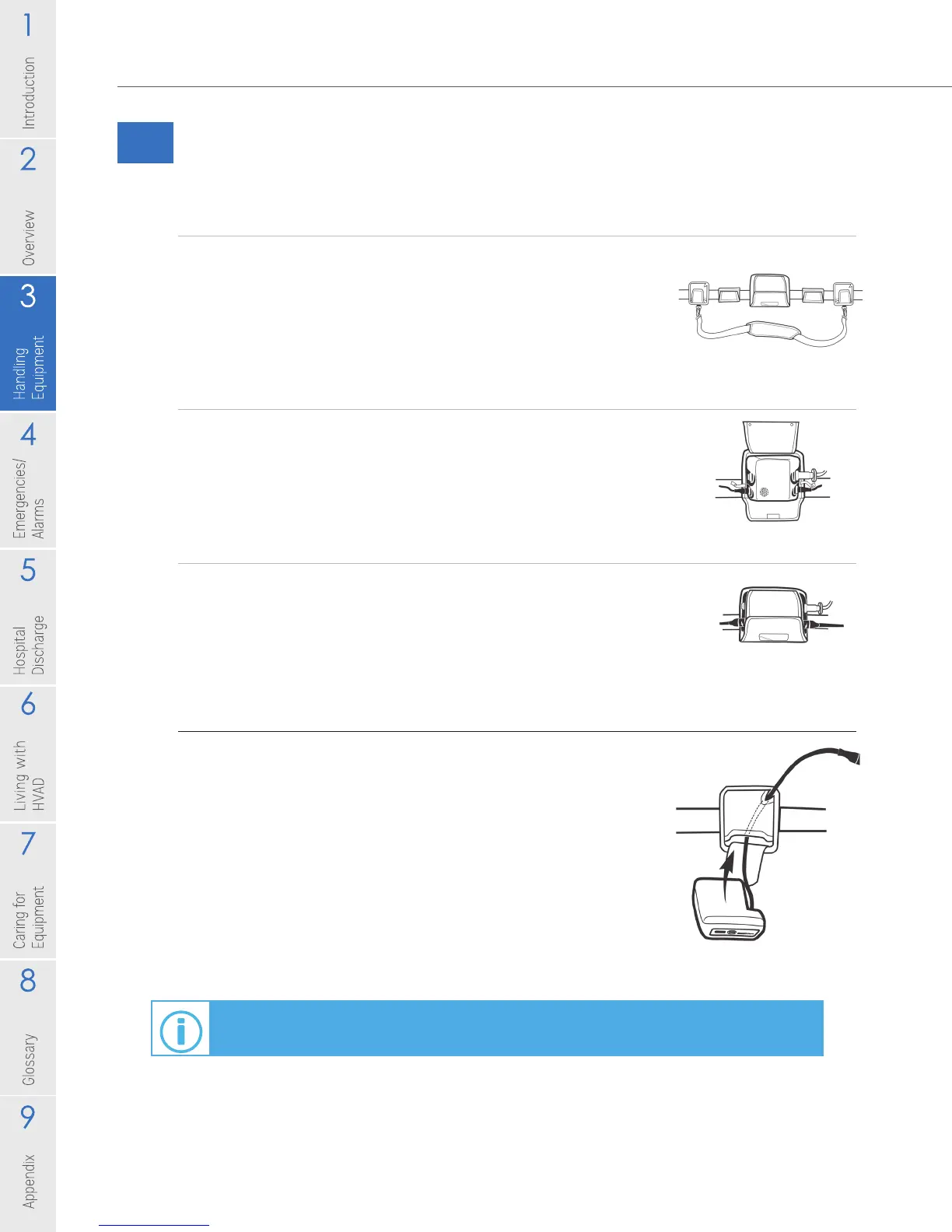

To Set Up and Use Your HeartWare
®
Waist Pack:
1. Place the waist pack on a table or other at surface with
the clear window facing you. Attach the support strap
as shown. Open the cover and undo the snaps of the
controller pocket.
2. Place the controller as shown.
3. Fasten the snaps and fold the cover closed.
4. To load the batteries:
Disconnect one battery from the controller.
Open the battery pocket and feed the battery cable
through the hole and then place the battery in the pocket.
Re-connect the battery to the controller and fold the
battery pocket cover closed.
Steps continued on next page
Figure 54
Figure 55
Figure 56
Figure 57
For additional information on connecting power sources, see Section 3.2.2.
