3.1 Display unit and operation
Touchscreen
Refer to your machine manual.
This feature must be enabled and adapted by the
machine tool builder.

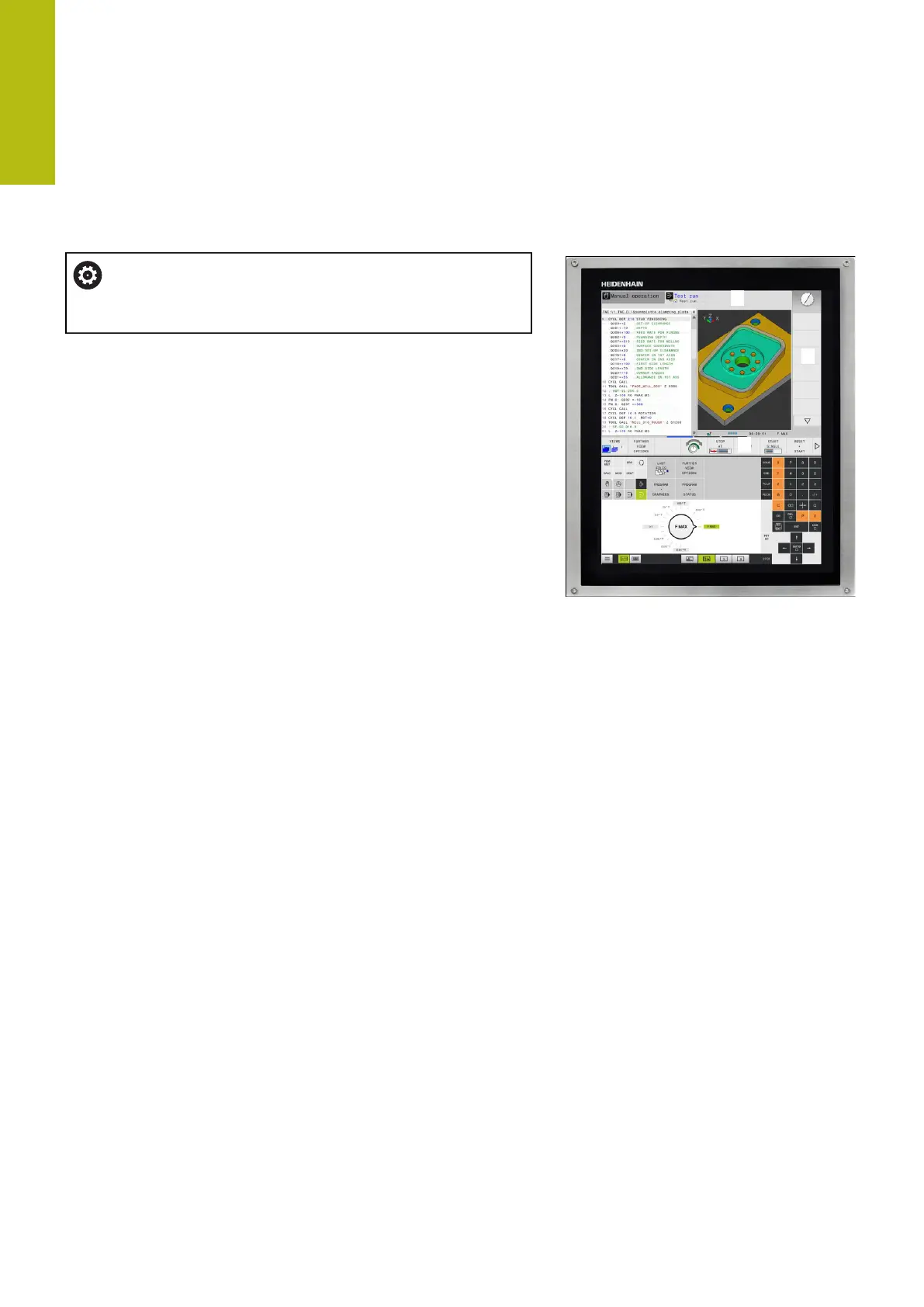

The touchscreen is distinguished by a black frame and the lack of
soft-key selection keys.
The TNC 620 has its operating panel integrated in the 19” screen.
1 Header
When the control is on, the screen displays the selected
operating modes in the header.
2 Soft-key row for the machine tool builder
3 Soft-key row
The control shows further functions in a soft-key row. The
active soft-key row is shown as a blue bar.
4 Integrated operating panel
