Special Functions | Dwell time FUNCTION DWELL

528

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

12.12 Dwell time FUNCTION DWELL

Programming dwell time

Application

The FUNCTION DWELL function enables you to program a dwell

time in seconds or define the number of spindle revolutions for

dwelling.

Procedure

Example

13 FUNCTION DWELL TIME10

Example

23 FUNCTION DWELL REV5.8

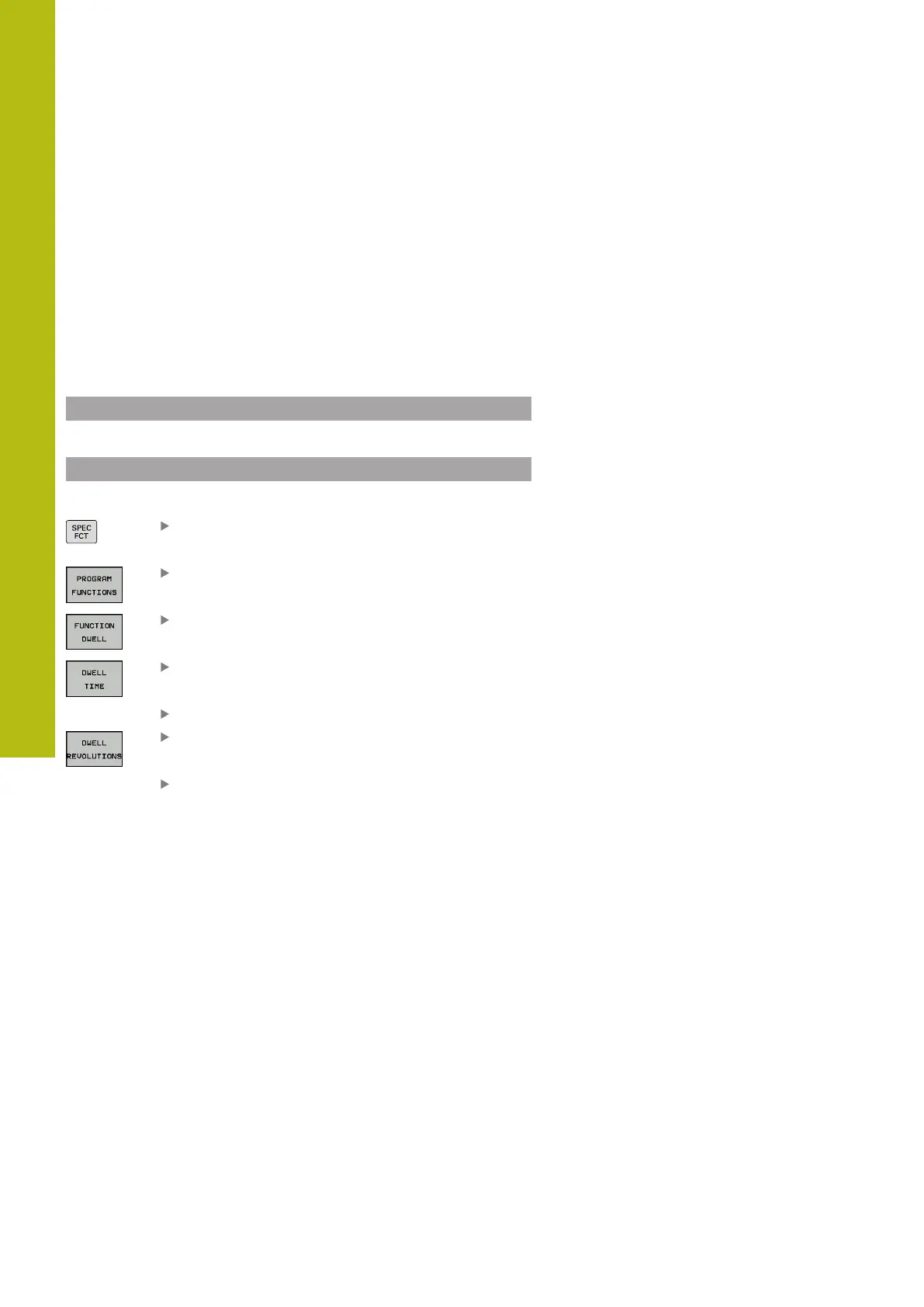

Proceed as follows for the definition:

Show the soft-key row with special functions

Press the PROGRAM FUNCTIONS soft key

FUNCTION DWELL soft key

Press the DWELL TIME soft key

Define the duration in seconds

Alternatively, press the DWELL REVOLUTIONS

soft key

Define the number of spindle revolutions
