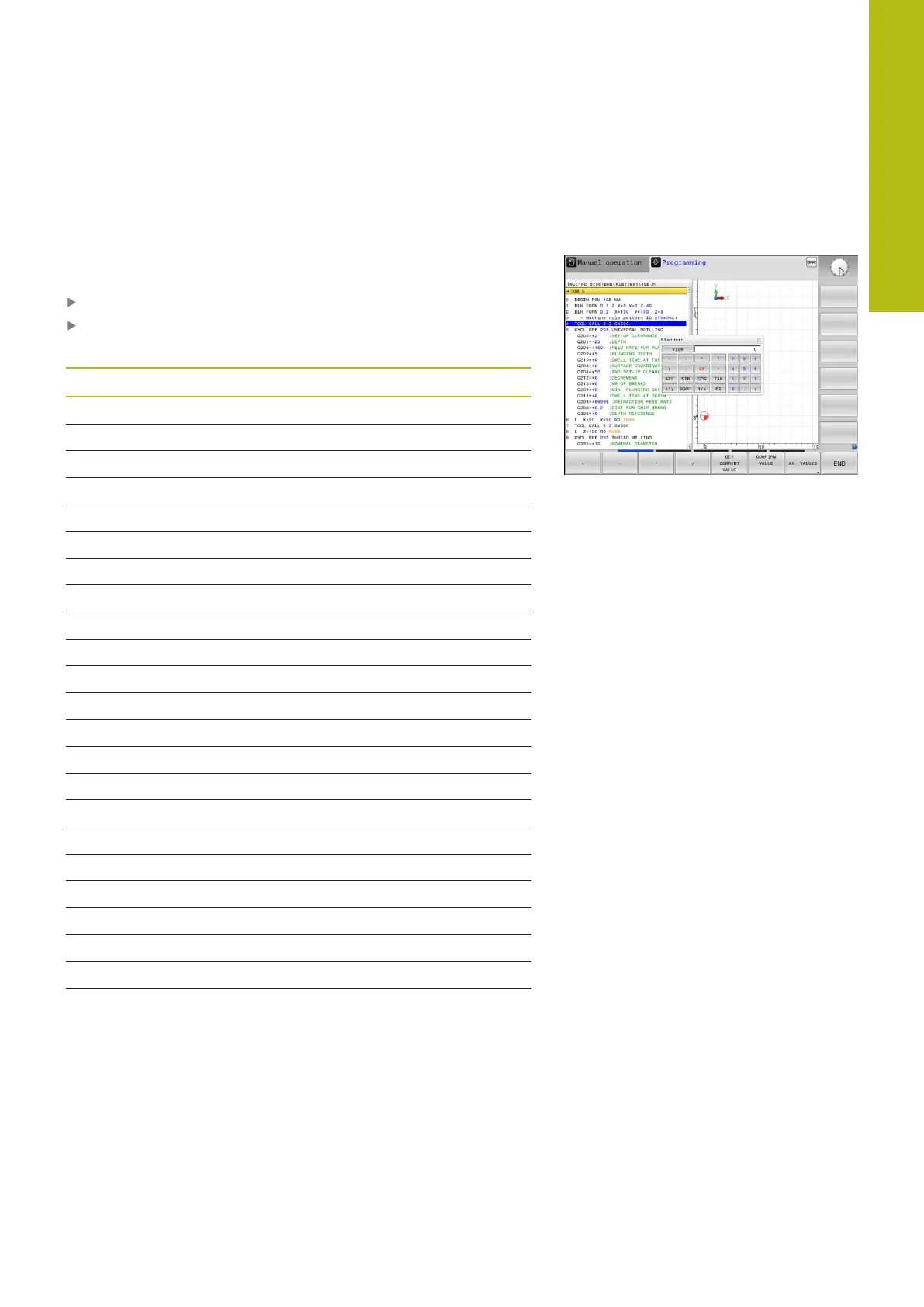

5.6 Calculator

Operation

The control features an integrated calculator with the basic

mathematical functions.

Use the CALC key to show and hide the calculator

Select the arithmetical functions: The calculator is operated with

short commands via soft key or through the alphabetic keyboard

Calculate function Shortcut (soft key)

Addition +

Subtraction –

Multiplication *

Division /

Calculating with parentheses ( )

Arc cosine ARC

Sine SIN

Cosine COS

Tangent TAN

Powers of values X^Y

Square root SQRT

Inversion 1/x

pi (3.14159265359) PI

Add value to buffer memory M+

Save the value to buffer memory MS

Recall from buffer memory MR

Delete buffer memory contents MC

Natural logarithm LN

Logarithm LOG

Exponential function e^x

Check the algebraic sign SGN

Form the absolute value ABS
