Data Transfer from CAD Files | CAD import (option 42)
8
342
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

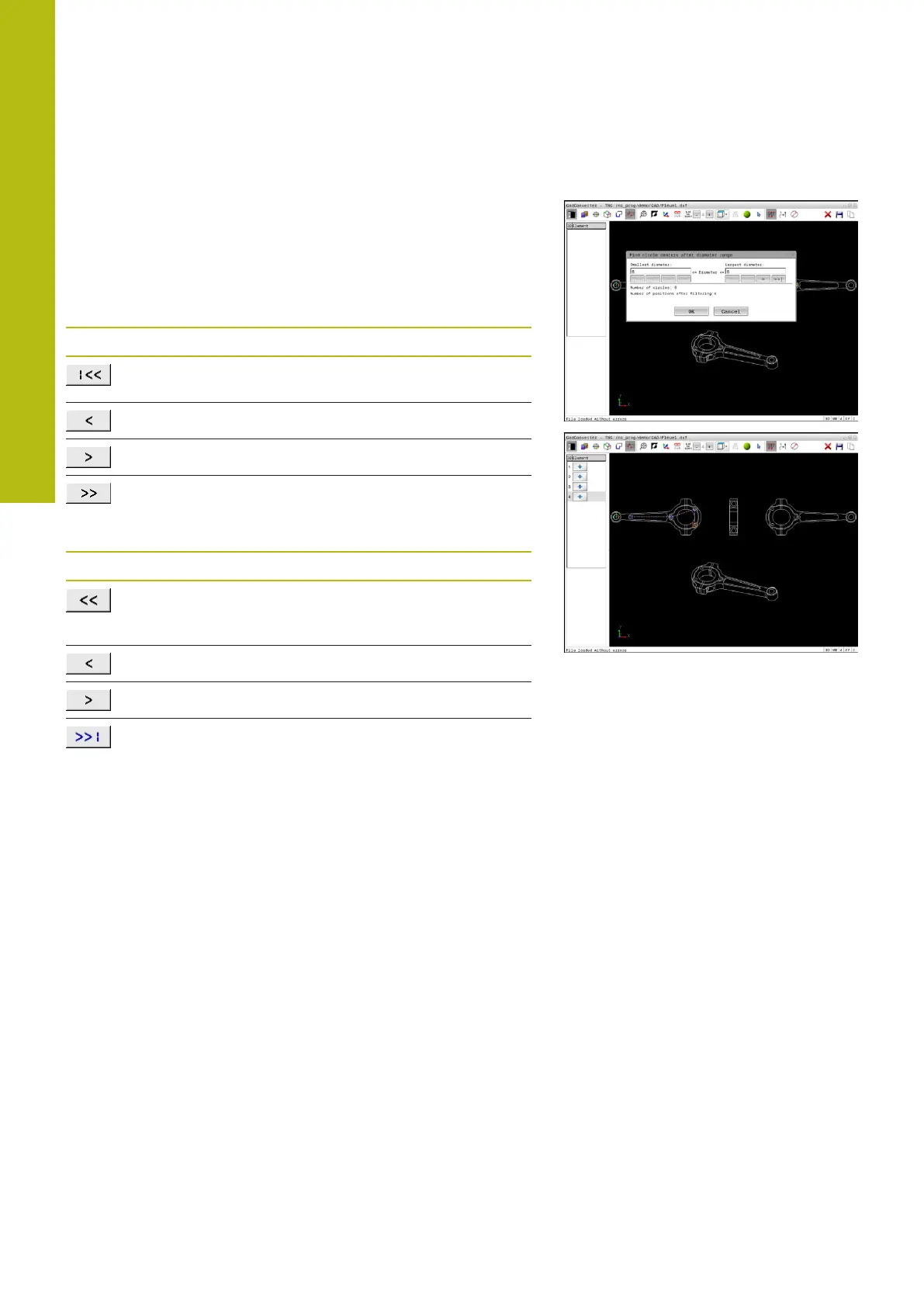

Filter settings
After you have used the quick selection function to mark hole
positions, a pop-up window appears in which the smallest diameter
found is to the left and the largest diameter to the right. With
the buttons just below the diameter display you can adjust the
diameter so that you can load the hole diameters that you want.
The following buttons are available:
Icon Filter setting of smallest diameter
Display the smallest diameter found (default
setting)
Display the next smaller diameter found
Display the next larger diameter found
Display the largest diameter found. The control
sets the filter for the smallest diameter to the
value set for the largest diameter
Icon Filter setting of largest diameter
Display the smallest diameter found. The
control sets the filter for the largest diameter to
the value set for the smallest diameter
Display the next smaller diameter found
Display the next larger diameter found
Display the largest diameter found (default
setting)
You can have the tool paths displayed by clicking the SHOW TOOL
PATH icon.
Further information: "Basic settings", page 327
