Manual Operation and Setup | Moving the machine axes
16
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
629

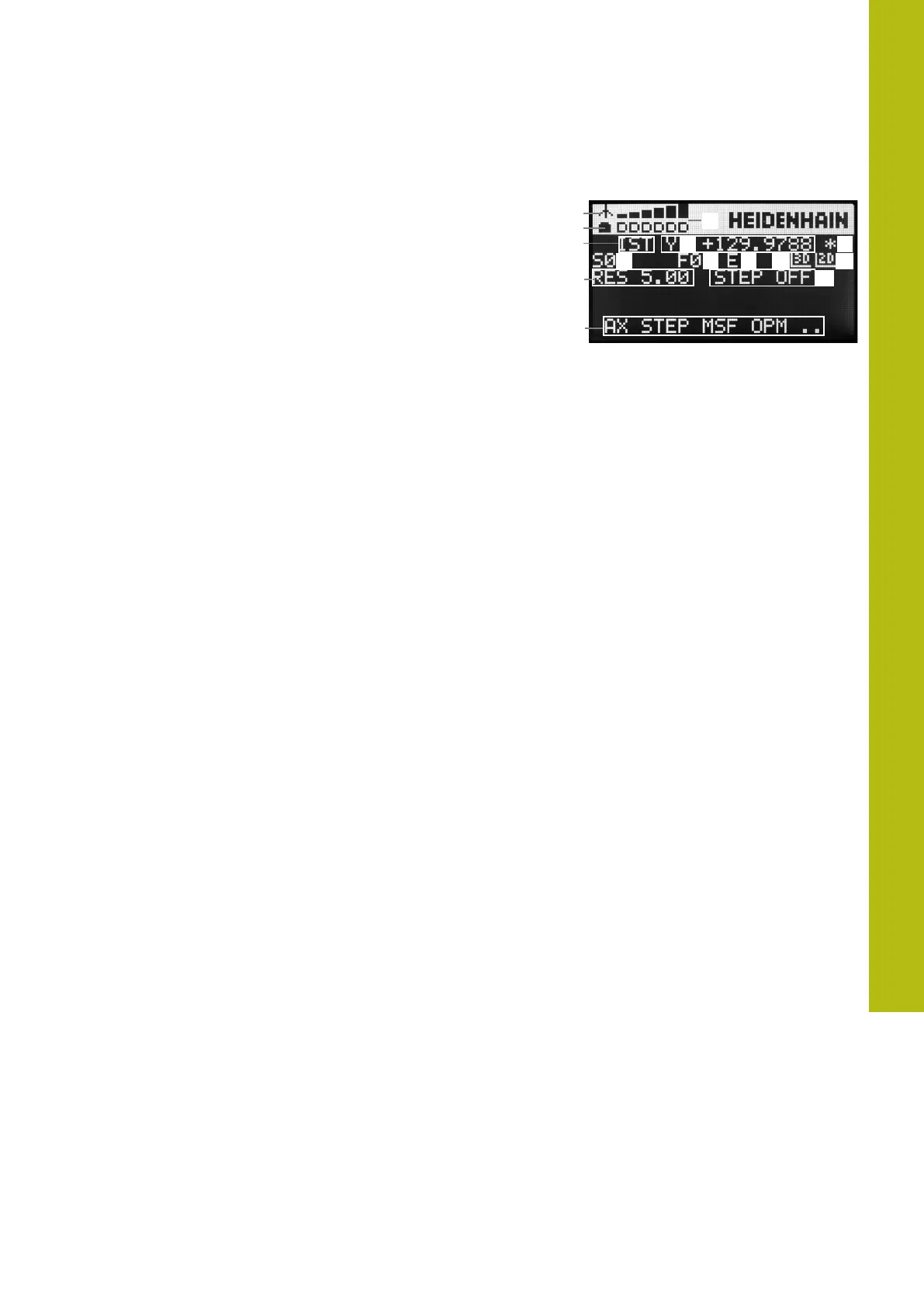

Handwheel display
1
Only with wireless handwheel HR 550FS: Shows whether
the handwheel is in the docking station or whether wireless
operation is active
2
Only with wireless handwheel HR 550FS: Shows the signal
strength, 6 bars = maximum signal strength
3
Only with wireless handwheel HR 550FS: Shows the charge
status of the rechargeable battery, 6 bars = fully charged A bar
moves from the left to the right during recharging
4
ACTL: Type of position display
5
Y+129.9788: Position of the selected axis
6
*: STIB (control in operation); program run has been started or
axis is in motion
7
S0: Current spindle speed
8
F0: Feed rate at which the selected axis is moving
9
E: Error message
If an error message appears on the control, the handwheel
display shows the message ERROR for three seconds. Then the
letter E is shown in the display as long as the error is pending on
the control.
10
3D: Tilted-working-plane function is active
11
2D: Basic rotation function is active
12
RES 5.0: Active handwheel resolution. Path traversed by the
selected axis with a handwheel revolution
13
STEP ON or OFF: Incremental jog active or inactive. If the
function is active, the control additionally displays the current
traversing step
14
Soft-key row: Selection of various functions, described in the
following sections
