Ch. 18 ELECTRICAL EQUIPMEMNT
18-7

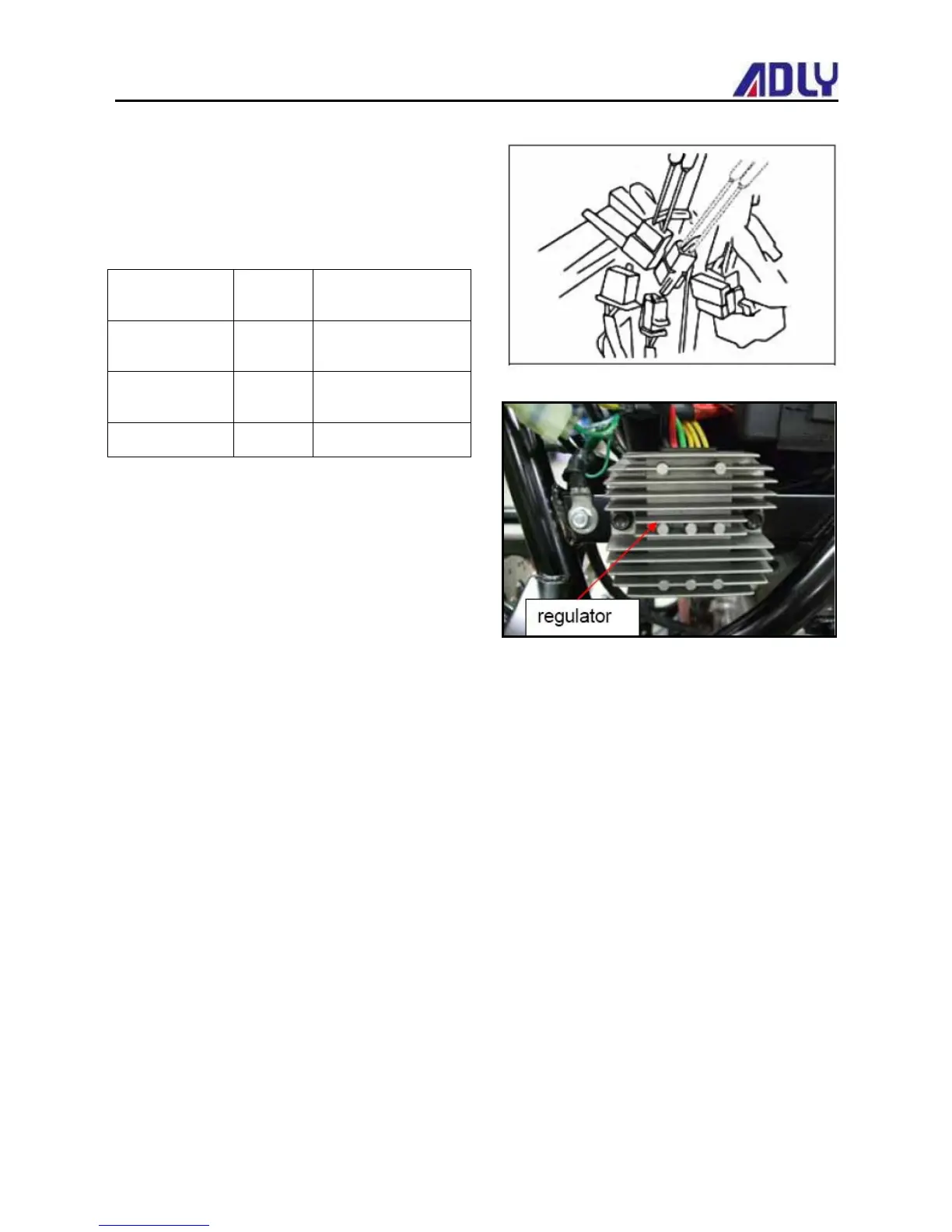

Inspection on regulator rectifier
Remove the seat, side cover L.
Disconnect three couplers of the regulator
Rectifier
Inspection the rectifier coupler to the wire harness
passes the condition.
Item
Check
Points
Standard Value
Main switch
Connection
B – G Battery
voltage(ON)
Battery
connection
R---G Battery voltage
Charging coil Y---Y
0.17 ~ 0.8Ω
If the readings measured are not normal, check
parts in the circuit.
If the parts are normal, then trouble is in the
wiring.
If there is nothing wrong with parts and wiring,
replace the regulator rectifier.
