4.5 Electric drive system
4.6 Drive system
The bicycle is driven by muscle power via the chain
drive. The force which is applied by pedalling in the
direction of travel, drives the front chain wheel. The
chain transmits the force onto the rear chain wheel and
then onto the rear wheel.

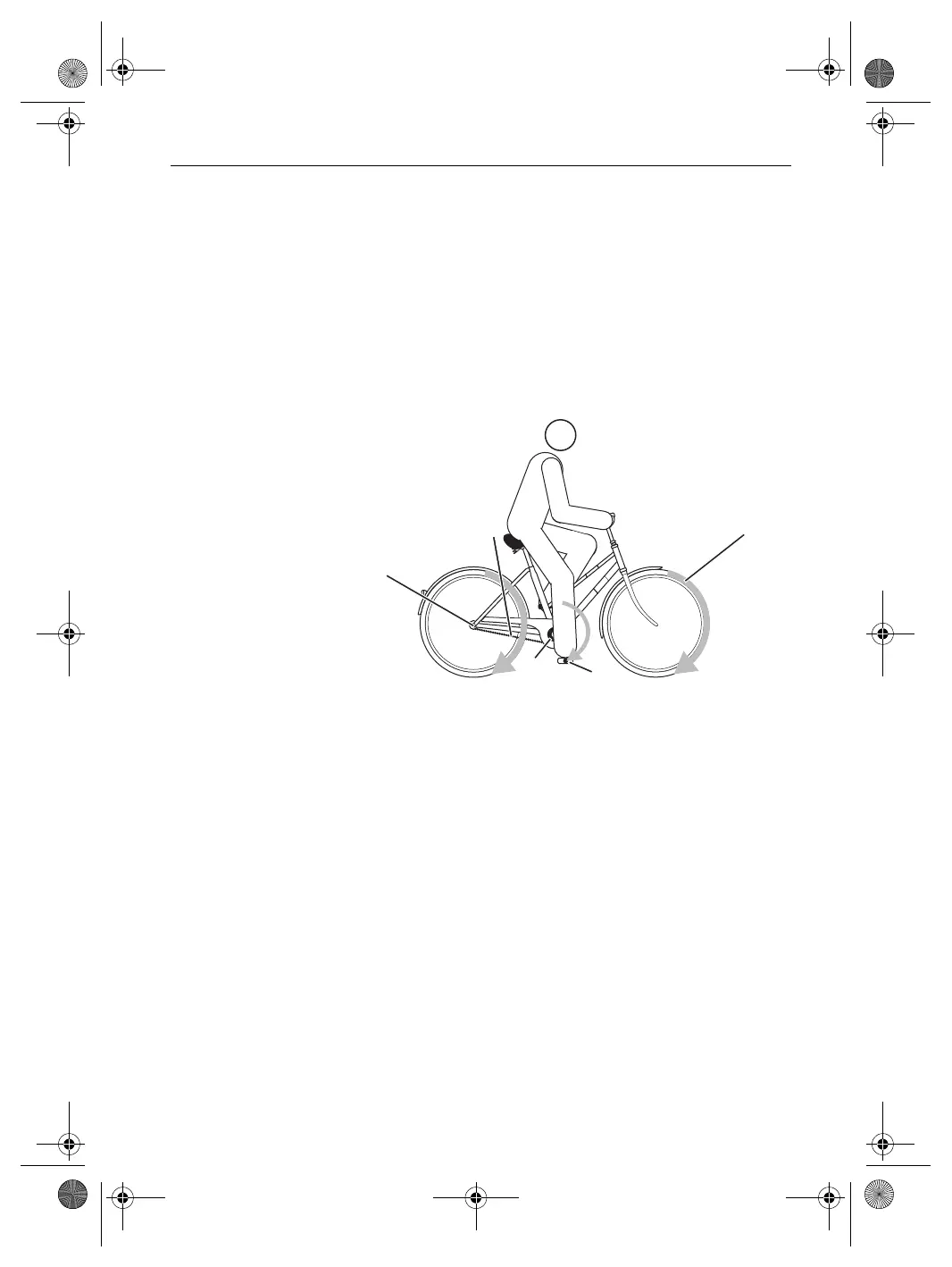

Figure 7: Diagram of drive system
1 Direction of travel
2Chain
3 Rear chain wheel
4 Front chain wheel
5 Pedal
The bicycle also has an integrated, electric drive
system. The electric drive system is made of up to
8 components:
