8.4.4 Setting the gear shift
If the gears cannot be selected cleanly, the tension of
the shift cable will need to be readjusted.
 Carefully pull the adjusting sleeve away from the
shifter housing, turning it in the process.
 Check the function of the gear shift after each
adjustment.
8.4.4.1 Cable-operated gear shift, single-cable
 For a smooth gear shift, set the adjusting sleeves
on the gear shift housing.

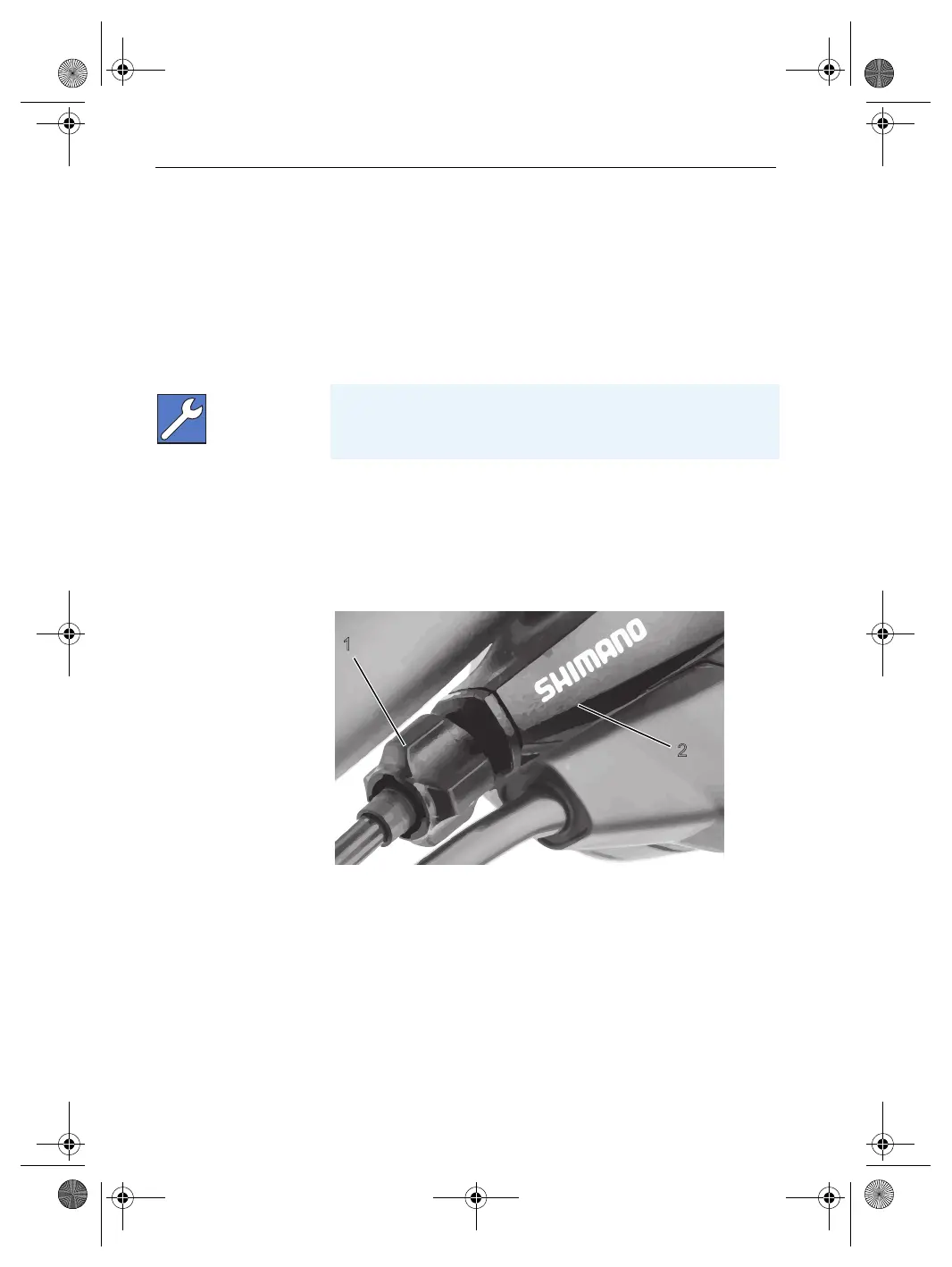

Figure 28: Adjusting sleeve (1) for the single-cable cable-operated gear shift
with shifter housing (2), example
If the gear shift cannot be set this way, the assembly
of the gear shift will need to be inspected by the
HERCULES specialist dealer.
