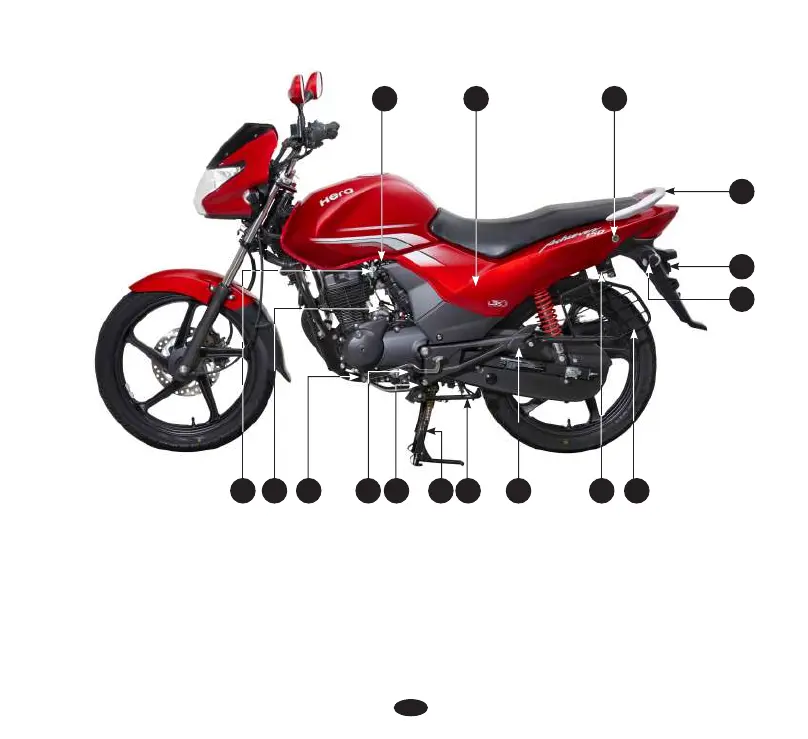

HERO Achiever - Left Side View Component Identification

(1) Fuel valve
(2) Starter motor
(3) Gear shift pedal
(4) Rider foot rest
(5) Side stand switch
(6) Main stand
(7) Side stand
(8) Pillion foot rest
(9) Helmet hanger
(10) Saree guard with
women pillion step
(11) Rear turn signal lamp
(12) Rear reflex reflector
(13) Rear grip
(14) Seat lock
(15) Left side cover
(16) Air suction valve
*Accessories and features shown may not be part of standard fitment.
