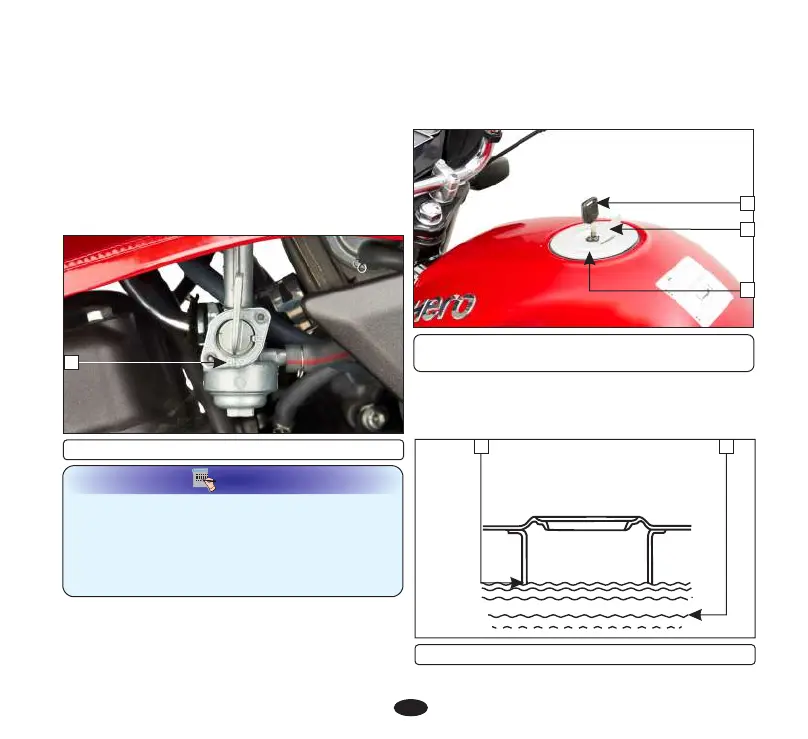

HERO Achiever - FUEL TANK OPERATION; Fuel Tank and Reserve Operation

(3) “RES” Position
3
18
NOTE
î Do not operate the motorcycle with the fuel
valve in the “RES” position after refilling.
You may run out of fuel, with no reserve.
î Do not keep the fuel valve between “ON”
and “OFF” position while driving, since this
may drain reserve fuel from the tank.
î Do not overfill the tank, there should be no
fuel in the filler neck (4). Fill the tank with
fuel (5) as shown.
5
4
(4) Filler Neck (5) Fuel
At “ON” position (2), fuel will flow from the
tank to the carburetor.
“ eserve” R Position
At "RES " position (3), fuel will flow ERVE
from the reserve fuel supply to the carburetor.
Use the reserve fuel only when the main
supply is exhausted. Refill the tank as soon as
possible after switching to "RES". The reserve
fuel supply is litres .1.8 (usable reserve)
FUEL TANK
Fuel tank capacity is 13 litres (Minimum)
including reserve supply of 1.8 litres (usable
reserve).
(1) Ignition key (2) Key hole cover
(3) Fuel tank cap
1
2
3
î To remove the fuel tank cap (3) open the
keyhole cover (2) insert the ignition key ,
(1), turn it clockwise and remove the cap.
