52
(4) from the brake panel (5) by removing
split pin (6) and lock nut (7).
î Remove the axle nut (8) and pull out the
rear axle (9). Remove the wheel.
Installation
î Reverse the removal procedure
- Axle nut torque: 6.8 kgf-m.
- Brake stopper arm nut torque: 2.2 kgf-m
î (page 41).Adjust the brake
î After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
CAUTION
!!
Always replace used split pins with new ones.
WASHING THE MOTORCYCLE
Follow the below mentioned steps for washing
the motorcycle.
î Wet the motorcycle with light water spray.
Avoid directing water to muffler outlets and
electrical parts.
î Clean the headlamp lens and other plastic
parts using a cloth or sponge dampened
with a solution of mild detergent and water.
Rub the soiled area gently rinsing it
frequently with fresh water.
î After cleaning spray water thoroughly.
î Dry the motorcycle by wiping with dry soft
cloth.
NOTE
î We at dealership take all above mentioned
precautions like recommended detergents
and usage of muffler caps/plugs during wash
to ensure quality wash.
î Do not use high pressure water (or air). It can
damage certain parts of the motorcycle.
CATALYTIC CONVERTER
This motorcycle is equipped with a catalytic
converter in the muffler to meet the emission
norms.
This catalytic converter contains noble metals
that serve as catalyst, promoting chemical
reactions to convert CO and HC in the
exhaust to CO and H O (water vapour).
2 2
A defective catalytic converter contributes to
air pollution and can impair your engine’s
performance.
5
3
2
8
9
4
1

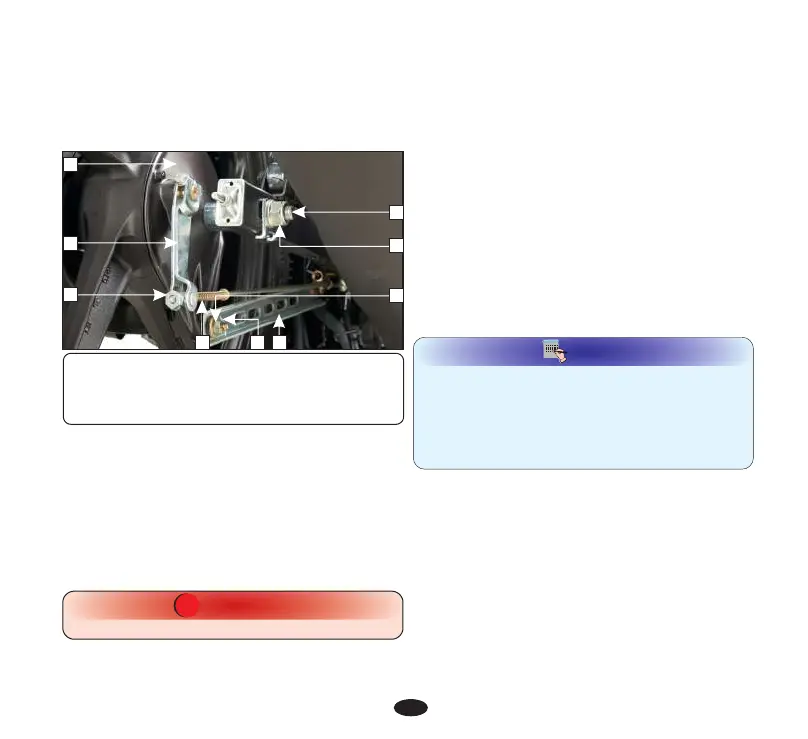

(1) Rear brake adjusting nut (2) Rear brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
(8) Axle nut (9) Axle
6
7
