11
(1) Turn signal indicators
(2) Low fuel indicator
(3) Side stand indicator
(4) Horn switch
(5) Turn signal switch
(6) Integrated brake lever
(8) Rear view mirror
(9) Dimmer switch/Passing switch
(10) Mode (M) and Set (S) buttons
(7) Lever lock
(11) High beam indicator
(13) i3s indicator
(12) LCD panel of meter console. Refer
instruments and indicators (page 16)
for fuel gauge, speedometer and other
features of console
(14) i3s switch
(15) Front brake lever
(16) Throttle grip
(17) Electric starter switch
(18) Ignition switch with steering lock, seat
lock and fuel lid opener

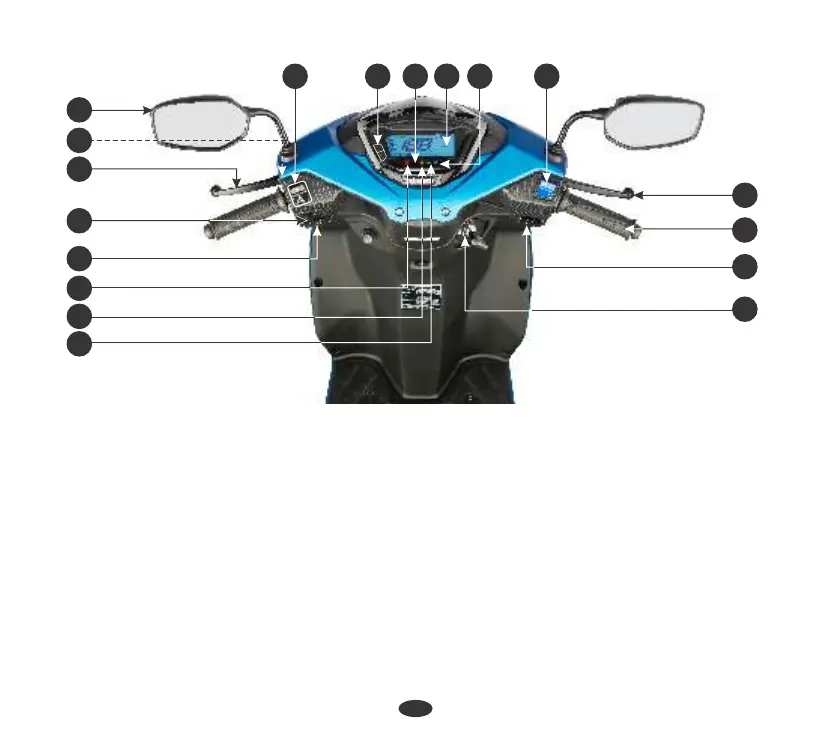

TOP VIEW
VEHICLE VIEWS
18
16
15
*Accessories and features shown may not be part of standard fitment.
8
4
3
5
9
6
M
S
14
11
1
2
7
10
12
13
17
