(4) Speedometer visor cover (5) Screws
4
5
•

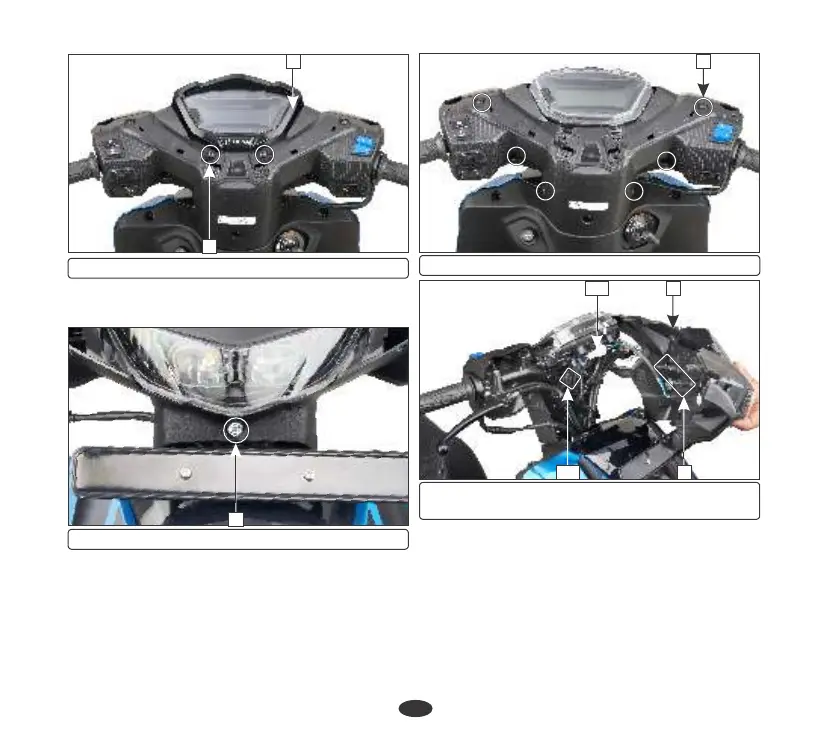

Remove the screw (6) from below the
headlamp.
(6) Screw
6
•
Remove the six screws (7) from the rear
side.
• Pull the headlamp assembly (8) slightly up,
carefully release the and lugs (9) from the
grommets (10) .
•
Disconnect the headlamp connector (11)
and remove the headlamp assembly.
(7) Screws
7
(8) Headlamp assembly (9) Lugs
(10) Grommets (11) Headlamp connector
9
11 8
10
(h) Headlamp focus adjustment
Installation is in the reverse order of removal.
Installation
Vertical adjustment
Headlamp focus is factory preset. However in
case of adjustment required please follow the
steps as given below.
•
Park the vehicle on its main stand on a
level surface in front of a wall.
