(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
21
•
Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
•
After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
1
2
“1” & “2” is marked on integrated brake arm.
NOTE
A
Right hand front brake cable (A) on “1” side
The distance, the front brake lever (1) and
integrated brake lever (2) moves before each
brake starts to engage is called free play (3).
Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
Adjustment

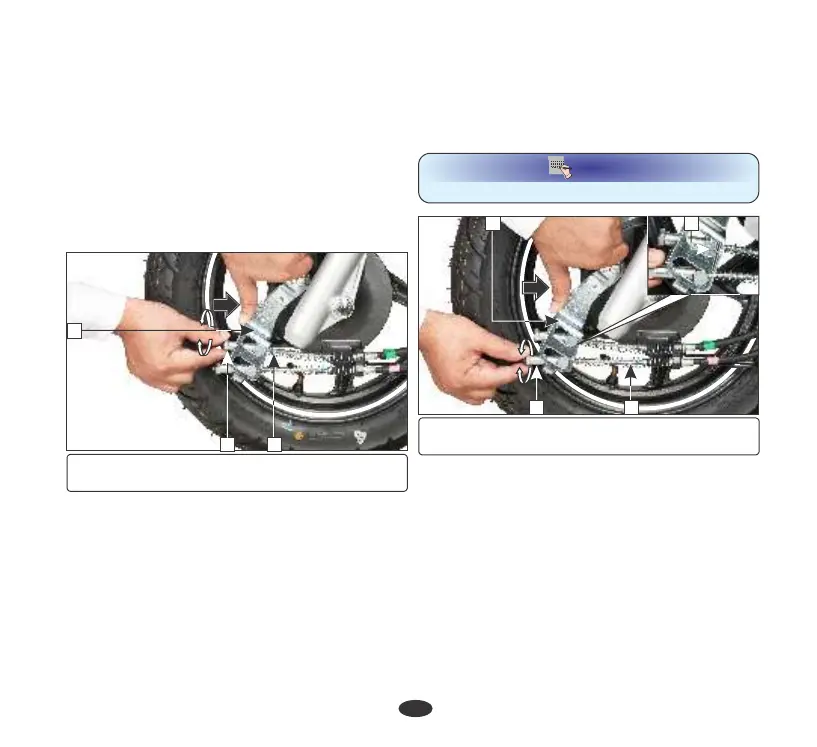

Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
• Push the integrated brake arm (4) by hand
in the direction as shown.
FREE PLAY: 10-20 mm
•
If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
Left hand front brake cable (B) on “2”
side.
•
Check the free play of right lever.
•
Push the integrated brake arm (4) by hand
in the direction as shown.
(6) S econd adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
1
2
(i)
(ii)
7
4 7
6
•
Make free play adjustment by turning the
adjuster nut (1) in the brake arm (2).
•
If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
•
Check the free play of integrated brake lever.
FREE PLAY: 10-20 mm
REAR BRAKE
(i)
(ii)
4
5
B
