Refer to the safety precautions (page 60).
Secondary air cleaner element cleaning
•
Remove the body cover (page 41).
SECONDARY AIR SUPPLY SYSTEM
The air cleaner element should be serviced at
regular intervals . Service more (page 61)
frequently when riding in unusually wet or
dusty areas.
•
Remove the air cleaner element housing
cover (1) by removing the screw (2).

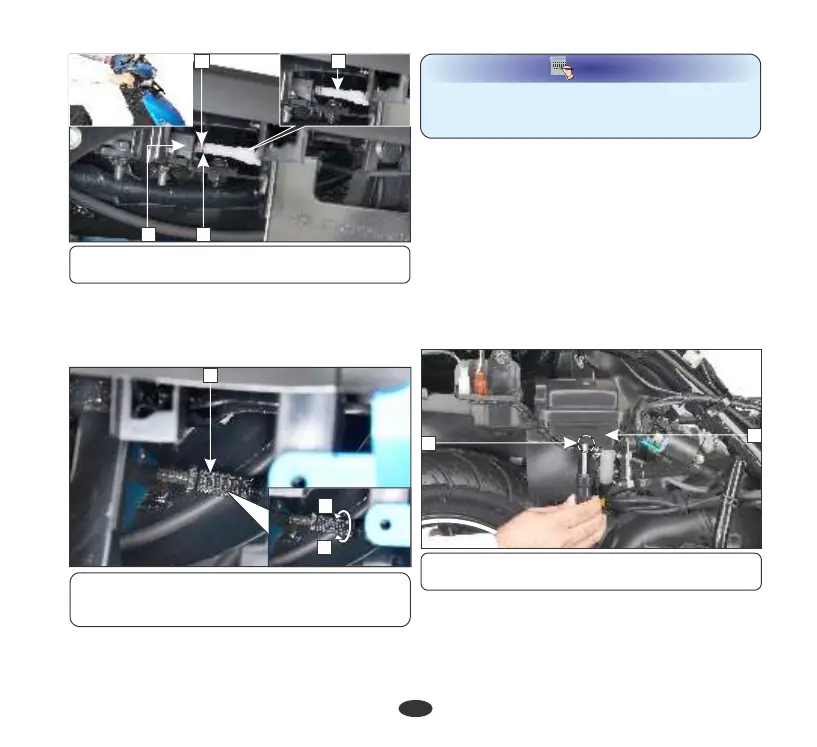

(1) Red line (2) i3s switch plunger
(3) i3s switch body (4) Black line
4
2
3
(5) i3s adjuster
(A) Clockwise: Increase free play
(B) Anticlockwise: Decrease free play
•
To achieve the startability of vehicle, adjust
the throttle movement (approx. 3-5 mm)
on i3s adjuster (5) in clockwise/
anticlockwise directions.
B
A
5
NOTE
Optional check: red paint mark is not visible
and only black mark is visible. This to be
reconfirmed after adjustment.
1
(1) Air cleaner element housing cover
(2) Screw
2
1
•
Remove the air cleaner element (3).
•
Wash the air cleaner element in clean,
nonflammable or high flash point solvent
and let it dry thoroughly.
To Next Page
