22

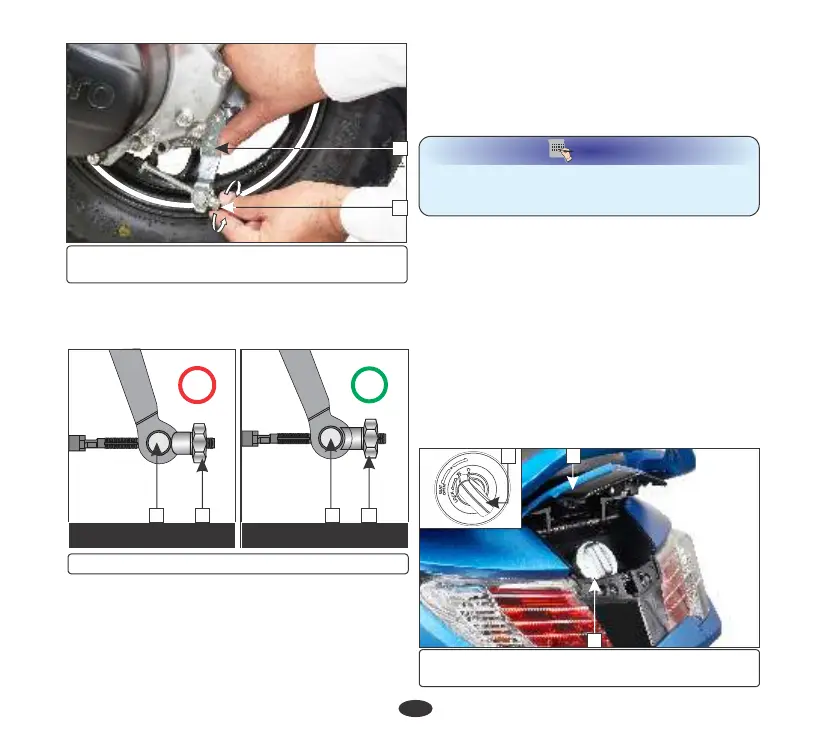

(3) Adjusting nut (4) Brake joint pin
Make sure the cut-out on the adjusting nut
(3) is seated on the brake joint pin (4) after
making final free play adjustment.
Check brake cable for kinks or signs of wear
that could cause sticking or failure.
Make sure the brake arm spring and fasteners
are in good condition.
Other checks:
FUEL
The fuel tank capacity is 5.5 litres (Be sure
to fill the fuel tank when low fuel indicator
glows).
The fuel tank is located under the seat.
To open the fuel filler cap (2), insert the
ignition key (3), push it in and turn the
ignition key to “FUEL OPEN” position
(page 27). The fuel tank lid (1) will open as
shown in the picture. Remove the fuel filler
cap by turning it counterclockwise.
(a) Fuel tank
Apply the brake several times and check for
free wheel rotation after the brake lever is
released.
NOTE
ü
(A) Cut-out not seated (B) Cut-out seated
(1) Adjuster nut (2) Brake arm
(i) Decrease free play (ii) Increase free play
2
1
3
4
3
4
If proper adjustment cannot be obtained by
this method, visit your Authorised Distributor/
Dealer.
(1) Fuel tank lid (2) Fuel filler cap
(3) Ignition key
N
O
I
T
I
N
O
I
G
N
I
T
I
F
U
E
L
O
P
E
N
H
S
U
P
S
H
U
P
2
3 1
(ii)
(i)
