Adjust the rear view mirror.
•
Tighten the lock nut.
•
Install the rear view mirror until it will
no longer turn.
Installation
•
Loosen the rear view mirror approximately 2
turns.
Removal
•
Loosen the lock nut (2) until it will no
longer turn.
(f) Rear view mirror
•
Loosen the rear view mirror (3) and
remove it.
•
Slide the dust cover up (1).
To open the right side rear view mirror the
threads are to be loosened in clockwise
direction and tightened in counter clockwise
direction.
NOTE

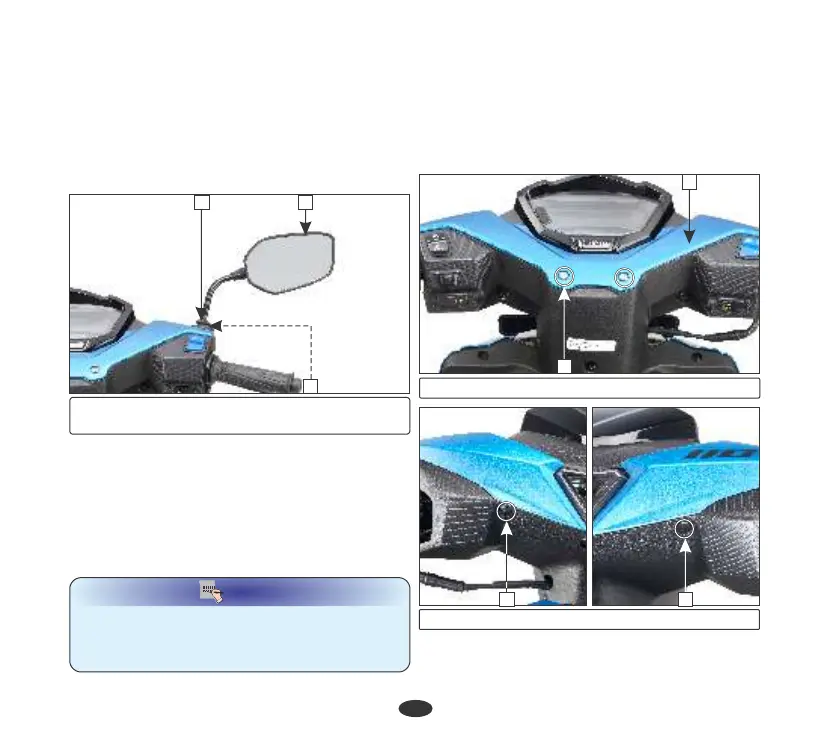

(1) Dust cover (2) Lock nut
(3) Rear view mirror
1
2
3
(g) Headlamp assembly
•
Remove the top handlebar cover (1) by
removing allen screws (2) and trim clips
from both side (3).
•
Remove the rear view mirror (page 47).
Removal
(1) Top handlebar cover (2) Allen screws
1
2
(3) Trim clips
3 3
•
Remove the speedometer visor (4) by
removing its screws (5).
