HERO MAESTRO EDGE 2021 - Body Cover Removal

•

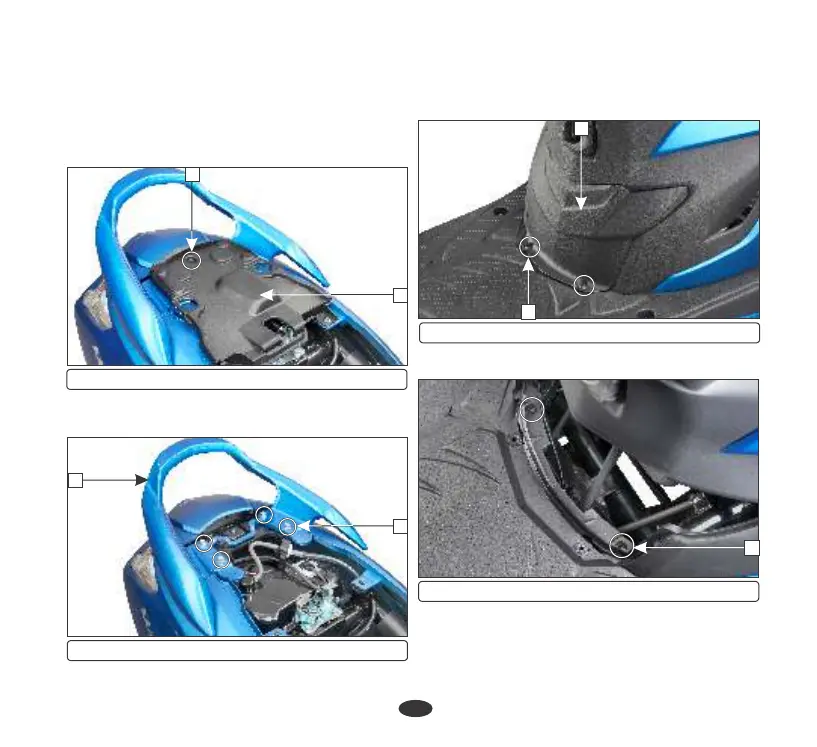

Remove the fuel tray sub assembly bolt (1).
(b) Body cover
Removal
•
Remove the center compartment (page 40).
•
Remove the fuel tray sub assembly (2).
•
Remove the rear grip (3) by removing its
bolts (4).
(1) Bolt (2) Fuel tray sub assembly
(3) Rear grip (4) Bolts
1
2
4
3
•
Remove the center cover (6).
•
Remove the screws (5) from the center
cover.
41
•
Remove the screws (7).
(5) Screws (6) Center cover
6
5
(7) Screws
7
