HERO PASSION PRO PROGRAMMED FI - Oil Filter Screen

36
•
When the engine oil filter element replaced
always replace the oil seal with the new one.
•
Make sure that oil seal is properly seated.
•
Apply engine oil on engine oil filter element
before installation.
•
Inspect and replace engine oil filter element
as specified in the maintenance schedule.
NOTE
•
Drain the engine oil thoroughly (page 35).
•
isconnect the lutch able ( )D c c 2 .
•
Remove the side stand switch screw (1).
OIL FILTER SCREEN
•
Remove the ick tarter edal ( ),k s p 3 muffler
(4), rider footrest assembly with side stand
(5) and right crankcase cover (6).
• Installation is in the reverse order of
removal.

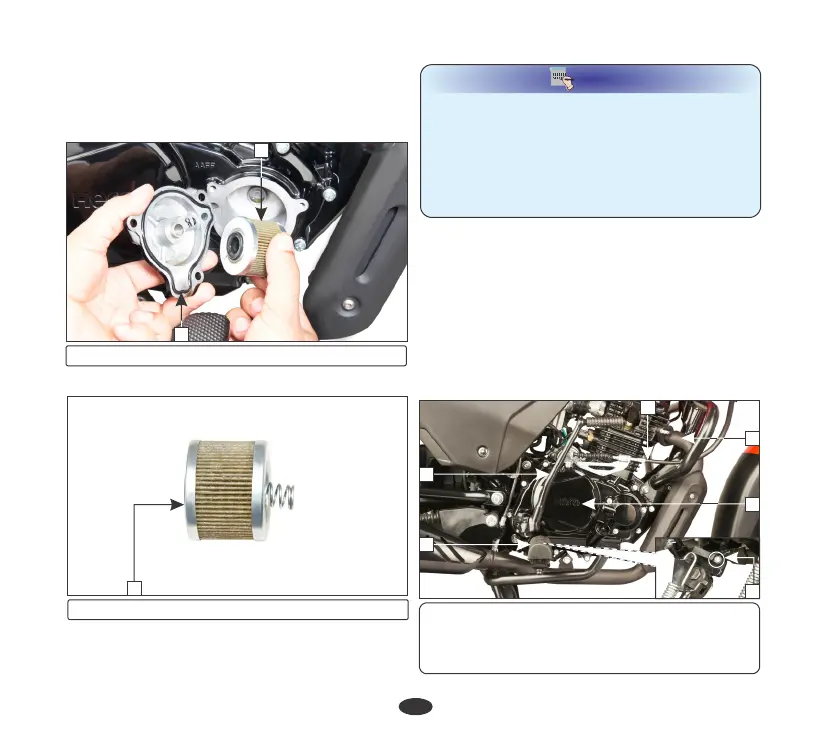

(4) Engine oil filter element
4
•
Remove the engine oil filter element cover
(2) with oil seal (3).
•
Remove the engine oil filter element (4)
from the cover.
(3) Oil seal (4) Engine oil filter element
4
3
•
Replace the engine oil filter element (4).
6
4
5
3
(1) Side stand switch screw (2) Clutch cable
(3) Kick starter pedal (4) Muffler
(5) Rider footrest assembly with side stand
(6) Right crankcase cover
2
1
