41
B
A

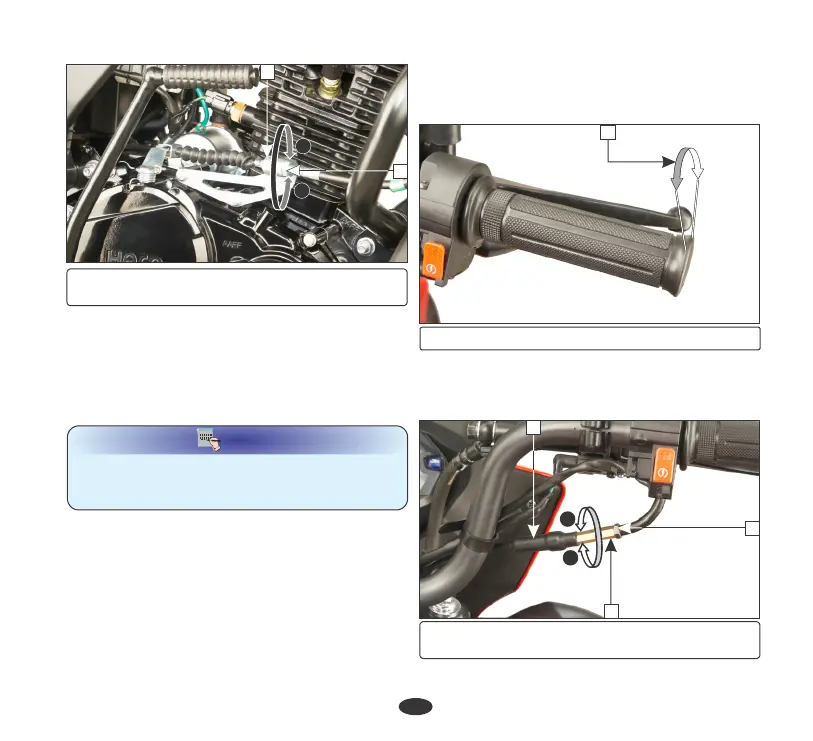

(3) Lock nut (4) Clutch cable adjusting nut
(A) Decrease free play (B) Increase free play
4
3
If proper adjustment cannot be obtained or the
clutch does not work correctly, visit your
Authorised workshop.Hero MotoCorp
NOTE
•
Check for clutch cable model. Use genuine
clutch cables.
•
Check for clutch cable routing.
•
Check the clutch cable for kinks or signs of
wear that could cause sticking or failure.
Other checks
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
THROTTLE OPERATION
Cable inspection
throttle body. If the cable is kinked, chafed or
improperly routed, it should be replaced or
Check for smooth rotation of the throttle grip
from the fully open to the fully closed position.
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
(1) Free play: 2-6 mm
1
Slide the boot (2), loosen the lock nut (3) and
turn the adjuster (4).
Free play adjustment
A
B
4
3
(2) Boot (3) Lock nut (4) Adjuster
(A) Decrease free play (B) Increase free play
2
