39
NOTE
The checking or adjusting of valve clearance
should be performed while the engine is cold.
The clearance will change as the engine
temperature rises.

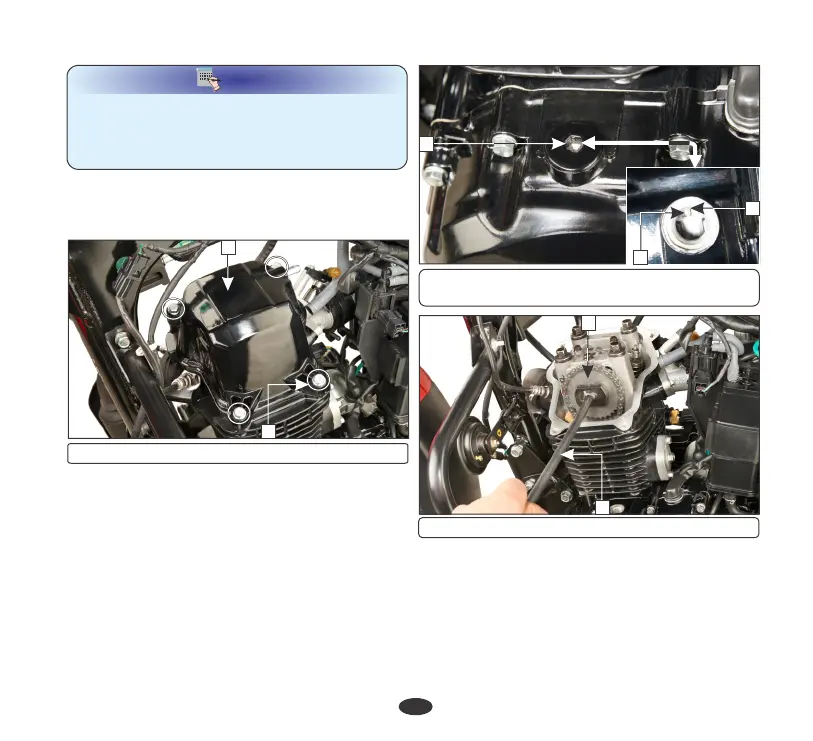

Ÿ Remove the cylinder head cover (1) by
removing the bolts (2).
Ÿ Remove the fuel tank.
(1) Cylinder head cover (2) Bolts
1
2
Ÿ Remove the timing hole cap (3). Rotate the
cam sprocket (6) clockwise using the
special tool (7) until the ‘T’ mark (4) on the
flywheel coincides with the index mark (5)
on the left crankcase cover. In this position,
the piston will either be on the compression
or exhaust stroke.
5
4
3
(3) Timing hole cap (4) 'T' mark
(5) Index mark
6
(6) Cam sprocket (7) Special tool
7
piston is in compression stroke. If they are
The adjustment must be made when the
piston is at top dead center and both the inlet
and exhaust valves are closed.
This condition can be determined by moving
the rocker arms. If they are free, it is an
indication that the valves are closed and the
