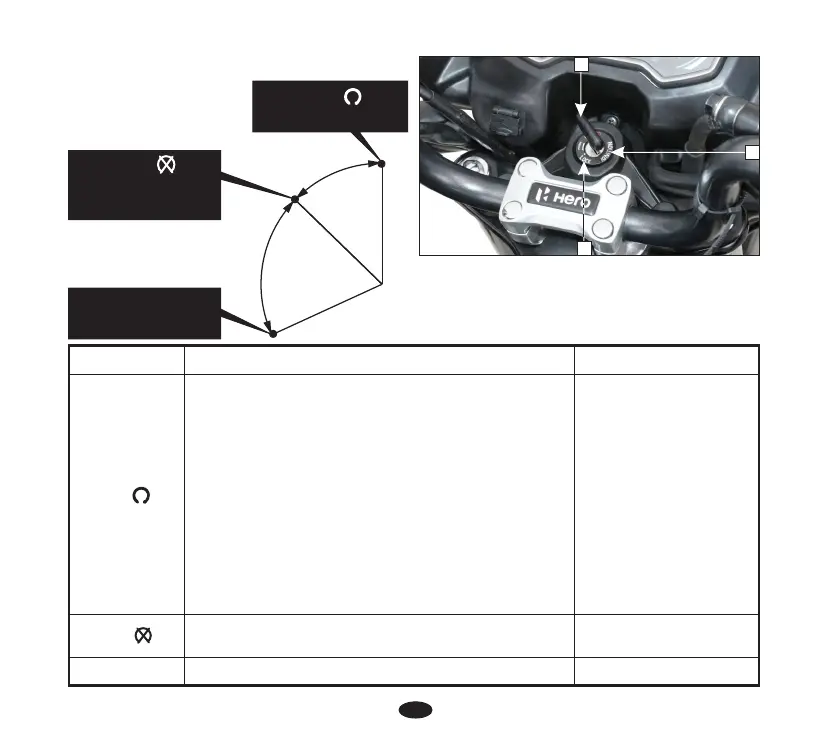

PARTS FUNCTION
Ignition switch
12
2
(1) Ignition switch
(2) Ignition key
(3) Steering lock position
3
“LOCK” position
“ON” ( )
position
“OFF”( )
position/
Lock open
Key cannot be removed
Engine cannot be started and no electrical system
will be functional.
Key can be removed
Key can be removed
Key removal
Steering can be locked.
FunctionKey position
“LOCK”
“ON” ( )
“OFF”( )
The LCD panel illuminates & initial display of multi
function digital segments are displayed. The fuel
gauge segment will swing to the maximum scale
once and back to its normal position. The
speedometer, odometer and RTMI will go to their
maximum values and will come back to its their
normal readings. Scroll message will appear in LCD
panel. The engine can be started. Turn signal lamp,
horn, tail/stop lamp, fuel gauge, passing switch,
position lamp & neutral indicator will be functional.
Programmed FI malfunction indicator lamp (MIL)
illuminates continuously and i3s indicator glows for
2 seconds.
