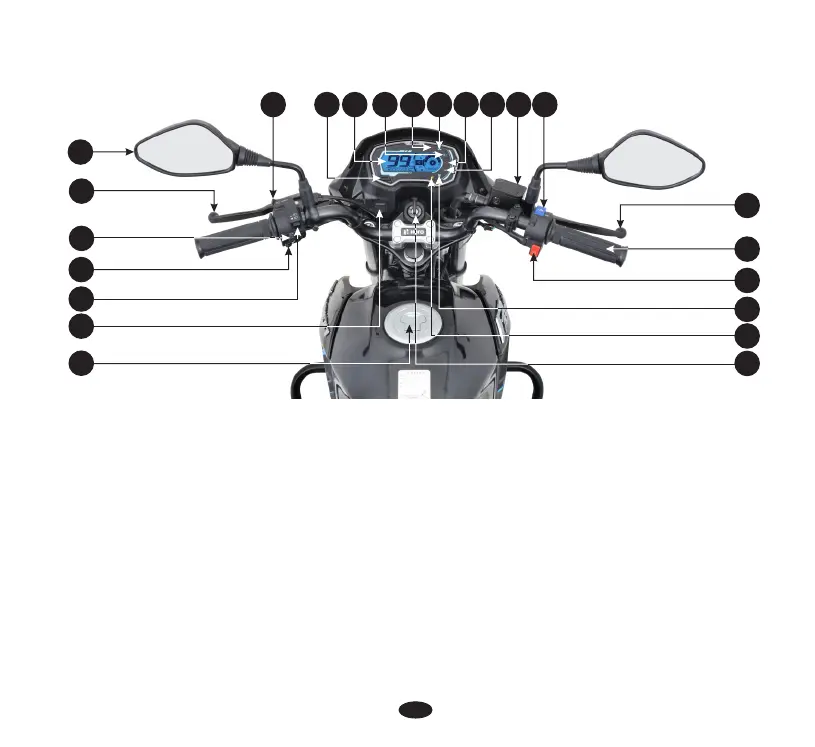

HERO PASSION XTEC - Vehicle Views and Controls; Top View Controls and Indicators

2
(7) Rear view mirror
(10) LCD panel of Meter console. Refer
instruments and indicators (page 15)
for fuel gauge, speedometer and other
features of console
(8) Passing switch
(5) Turn signal switch
(9) Mode button
(11) High beam indicator
(2) USB charger
(4) Horn switch
(6) Clutch lever
(1) Fuel tank cap
(3) Dimmer switch
(13) Turn signal indicators
#
(16) Front brake master cylinder/Reservoir
(12) Side stand indicator
(14) Programmed FI malfunction indicator
lamp (MIL)
(19) Throttle grip
(17) i3s switch
(23) Ignition switch with steering lock
(15) i3s indicator
(21) Neutral indicator
(22) Low fuel indicator
(18) Front brake lever
(20) Electric starter switch
*Accessories and features shown may not be part of standard fitment.
