NOTE
Visit Authorised Hero MotoCorp workshop
for inspection, cleaning, lubrication and
adjustment of drive chain at every 2000 km.
CAUTION
!!
Regular adjustment and lubrication as per the
maintenance schedule would ensure high
performance and longer life.

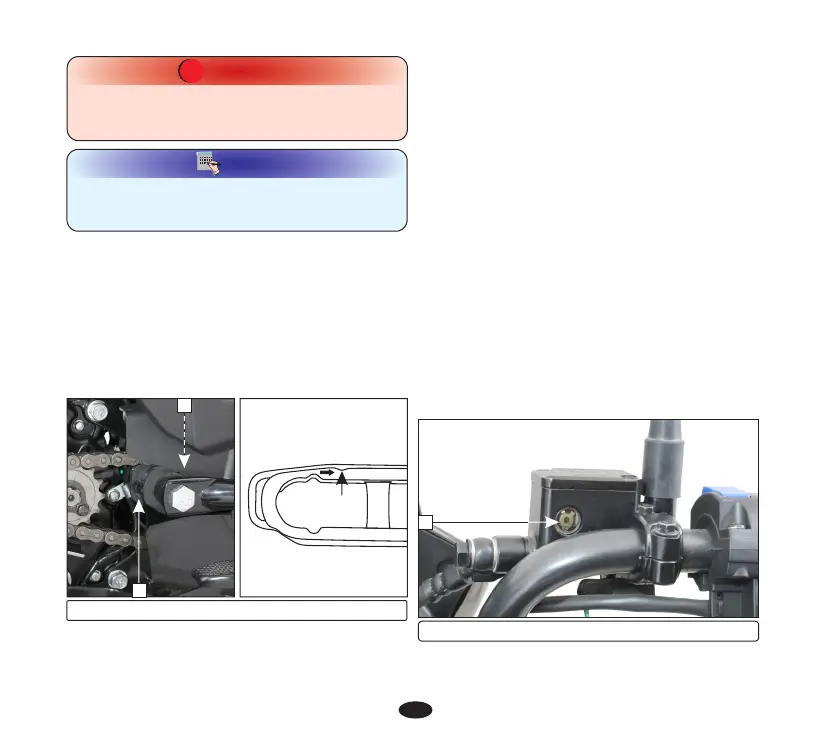

DRIVE CHAIN SLIDER INSPECTION
(Refer to “Maintenance Schedule” on
(page 37).
(1) Drive chain slider (2) Wear limit
2
1
Brakes (Integrated braking system)
BRAKES
Brakes are items of personal safety and should
always be maintained with proper adjustments.
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
Fluid level-Ensure that the brake fluid level
does not fall below “MIN” mark (1) on the
(a) Front brake inspection (Disc variant)
Location: Right handlebar.
master cylinder, when checked with the
master cylinder parallel to the ground. The
level decreases gradually due to piston
movement to compensate pad wear. If the
level decreases abruptly, check for leakage in
the brake system and contact your Authorised
Hero MotoCorp workshop.
Master Cylinder/Reservoir.
Brake fluid recommended: DoT 3 or DoT 4
(1) "MIN" mark
Check the drive chain slider (1) for wear, the
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is
reached. For replacement, visit your
Authorised Hero MotoCorp workshop.
