HERO PASSION XTEC - Suspension and Electrical System; Suspension Inspection and Adjustment

55
NOTE
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
3
4

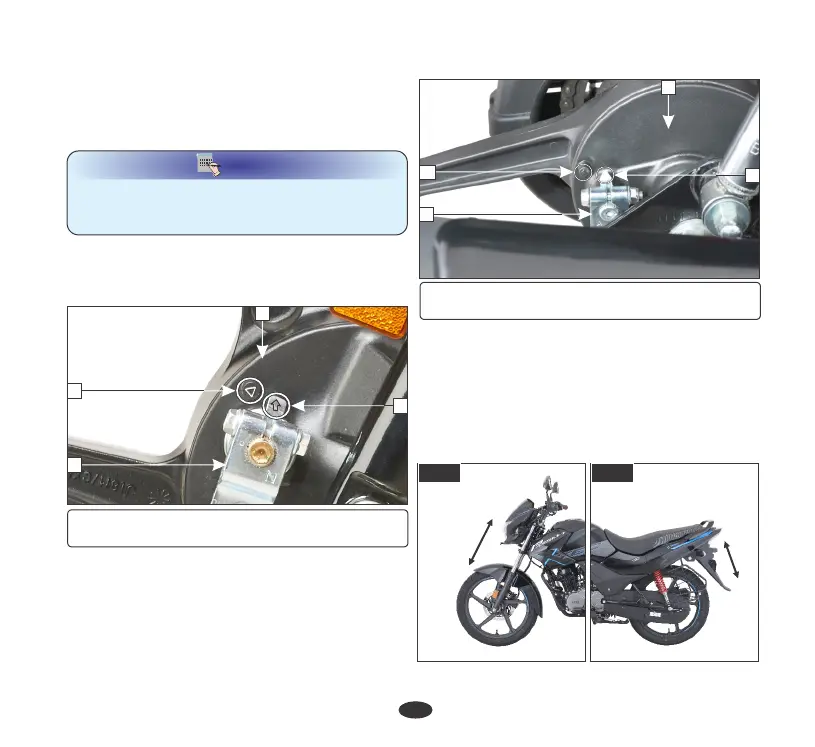

(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
1
2
Rear brake wear indication
4
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
1
3
Front brake wear indication
(e) Brake wear indicators
(Drum variant)
fixed to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4). If
the arrow aligns with the reference mark on
full application of the brake, the brake shoes
must be replaced.
When the brake is applied, an arrow (1),
2
•
Apply the brake several times and check for
free wheel rotation when released.
•
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
•
Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no
oil leakage.
SUSPENSION
Front and rear suspension inspection
Front Rear
