HERO PASSION XTEC - Page 57

54
(6) Second adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
(i)
(ii)
B6
7
F
C

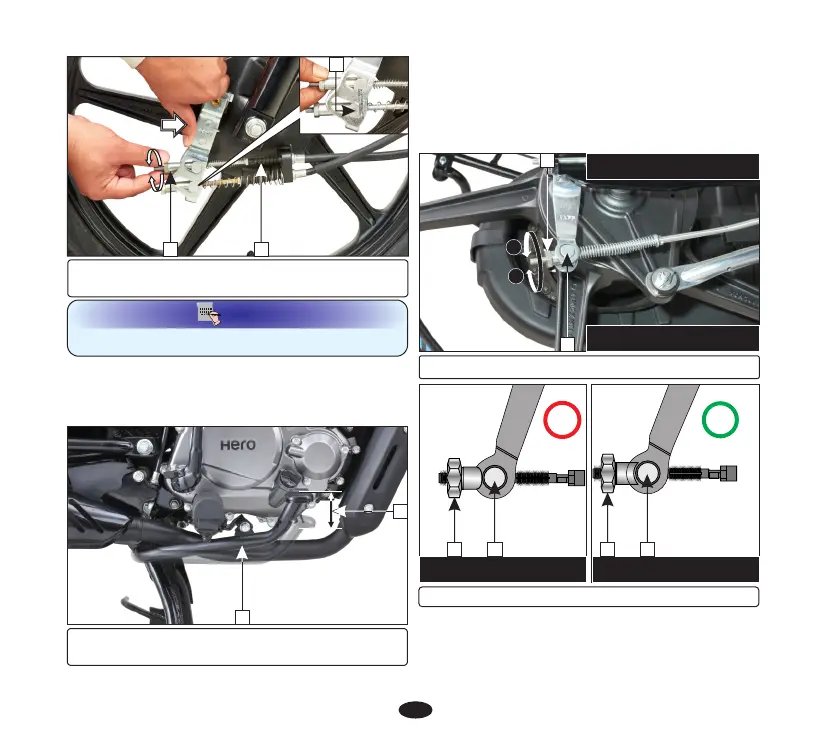

(d) Rear brake inspection
Adjustment
•
Park the vehicle on its main stand.
NOTE
“F” & “C” is marked on integrated brake arm.
(1) Rear brake pedal
(2) Free play: 20-30 mm
1
1
Free play (2) should be 20-30 mm.
• Measure the brake pedal (1) free play
before the brake starts to take hold.
•
If adjustment is necessary, turn the rear
brake adjusting nut (3).
(3) Adjusting nut (4) Brake joint pin
3
4
A
B
(A) Decrease free play (CW)
(B) Increase free play (ACW)
(3) Adjusting nut (4) Brake joint pin
ü
X
(A) Cut-out not seated (B) Cut-out seated
3
44
3
CW- Clockwise ACW- Anticlockwise
2
