53
1

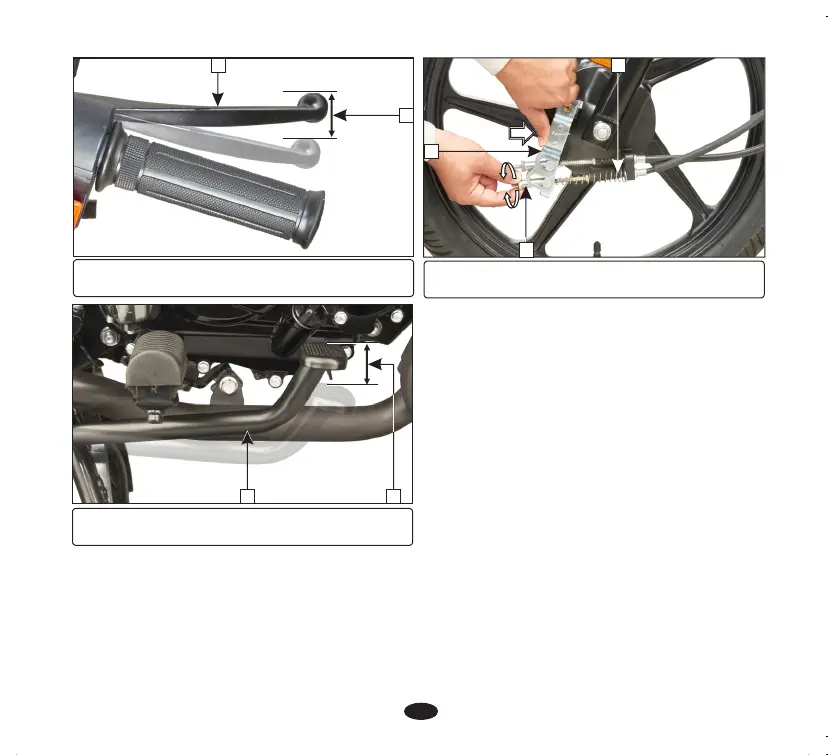

(1) Front brake lever
(3) Free play: 10-20 mm
3
Front brake cable (A) on “F” side
Adjustment
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
A
4
5
F
C
1
2
3
(2) Integrated/Rear brake pedal
(3) Free play: 20-30 mm
FREE PLAY: 10-20 mm
Ÿ Check the free play of front brake lever.
FREE PLAY: 20-30 mm
Ÿ Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
Ÿ After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
Ÿ If the free play is out specification turn the
adjuster nut to obtain desired free play.
Integrated brake cable (B) on “C” side
Adjustment
Ÿ Check the free play of rear brake pedal.
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
Ÿ If the free play is out specification turn the
adjuster nut to obtain desired free play.
To Next Page
