HERO PASSION XTEC - Engine Oil Filter Element

42
CAUTION
!!
•
Running the engine with insufficient oil can
cause serious engine damage.
•
Engine oil is a major factor affecting the
performance and service life of the engine.
Non-detergent, vegetable or castor based
racing oils are not recommended.
•
Running the engine with excessive oil can
cause spark plug fouling & loss in
performance.

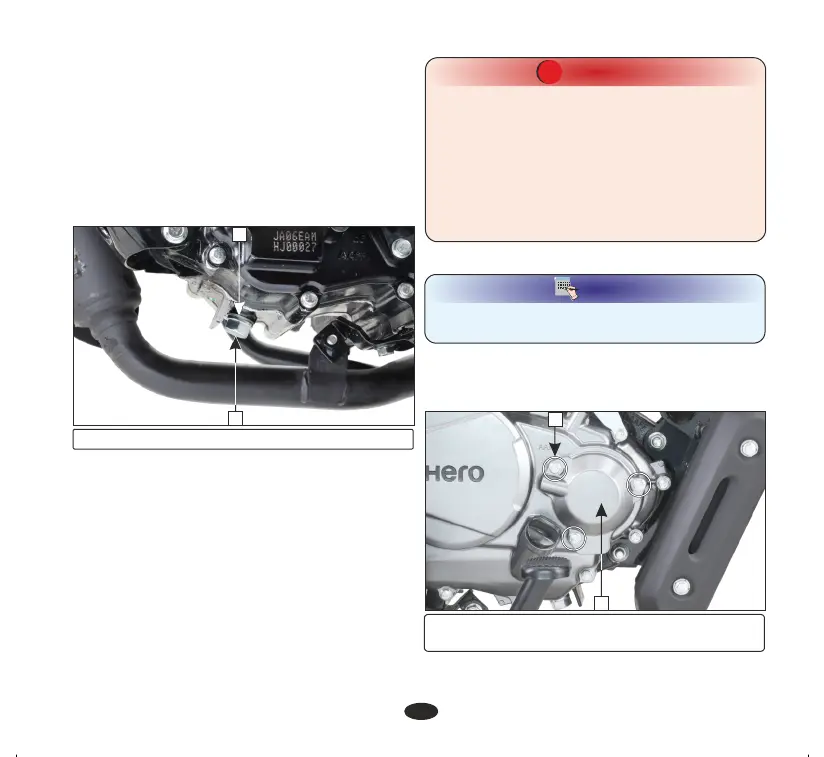

(1) Drain bolt (2) Sealing washer
ENGINE OIL FILTER ELEMENT
Drain the engine oil thoroughly (page 42) in
case of engine oil filter element replacement.
NOTE
Drain engine oil with the engine warm and the
vehicle on its main stand.
•
To drain the oil, remove the oil level dipstick
and drain bolt (1) with sealing washer (2).
Engine oil replacement process/
•
After the oil has completely drained,
reinstall the drain bolt with a new sealing
washer.
Oil circulation inspection
•
Fill the crankcase through the oil filler hole
with (approximately) of the 0.75 litre
recommended grade oil.
•
Stop the engine, let the engine oil settle
down and recheck the oil level.
vehicle in an upright position and that there
are no oil leaks.
•
Start the engine and allow it to idle for few
minutes.
•
Make sure that oil level is at the “UPPER”
level mark of the oil level dipstick with the
•
Reinstall the oil level dipstick with a new
O-ring.
(1) Mounting bolts
(2) Engine oil filter element cover
2
1
•
Remove the three mounting bolts (1).
•
Remove the engine oil filter element cover
(2) with oil seal (3).
1
2
