(2) Side stand switch (3) Side stand spring
2
3
Ensure that adequate care should be taken
while cleaning the side stand switch.
CAUTION
!!
•
If the side stand indicator (1) does not operate
as described in above steps, please visit your
Authorised Hero MotoCorp workshop.
Your vehicle is equipped with “Side stand
engine kill” feature for safety purpose.
•
It prevents starting the engine when
transmission is in gear (irrespective of clutch
lever operation) and side stand is down.
This feature has following functions:
•
It stops the running engine when
transmission is in gear (irrespective of clutch
lever operation) and side stand is moved
down.
WARNING
!!
“Side stand engine kill” system is not affected
by clutch lever operation.

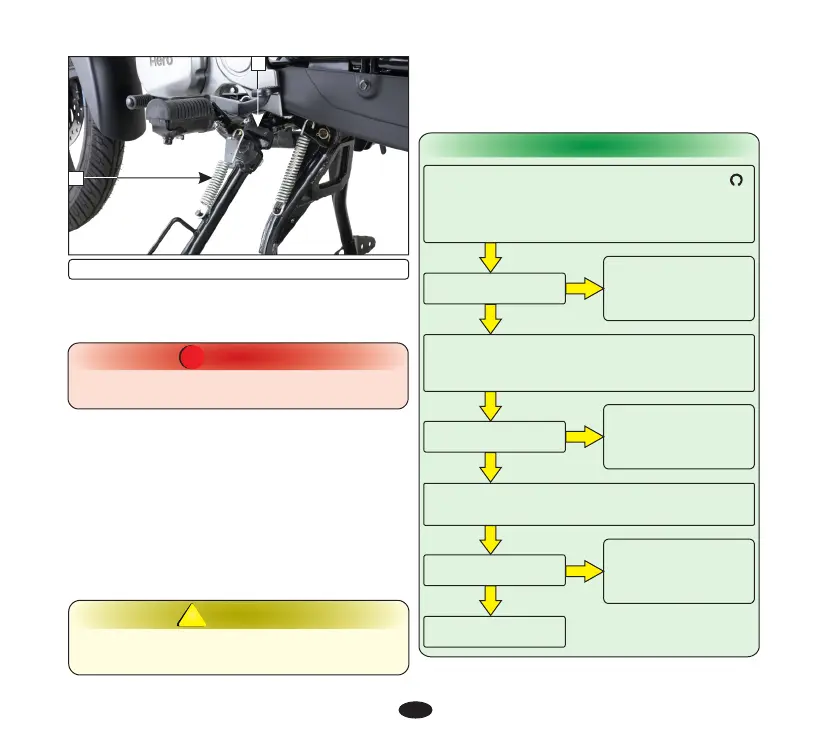

INSPECTION FLOW DIAGRAM
2. Then shift the transmission to gear (with
engine running and irrespective of clutch
lever operation).
Does engine stop?
Visit Authorised
Hero MotoCorp
Workshop
NO
1. Turn the ignition switch to “ON” ( )
position and press the electric starter
switch (with transmission in neutral and
side stand is down).
3. Now press the electric starter switch (After
engine has stopped).
NO
SYSTEM IS OK
Does engine start?
YES
Visit Authorised
Hero MotoCorp
Workshop
NO
YES
Does engine start?
Visit Authorised
Hero MotoCorp
Workshop
YES
To inspect the functionality of this feature,
park the vehicle on its main stand and check
all the conditions described in the inspection
flow diagram:
