F
C
45
WARNING
!!
Always apply front and rear brakes
simultaneously to avoid skidding of vehicle.
(1) Wear indicator groove
1

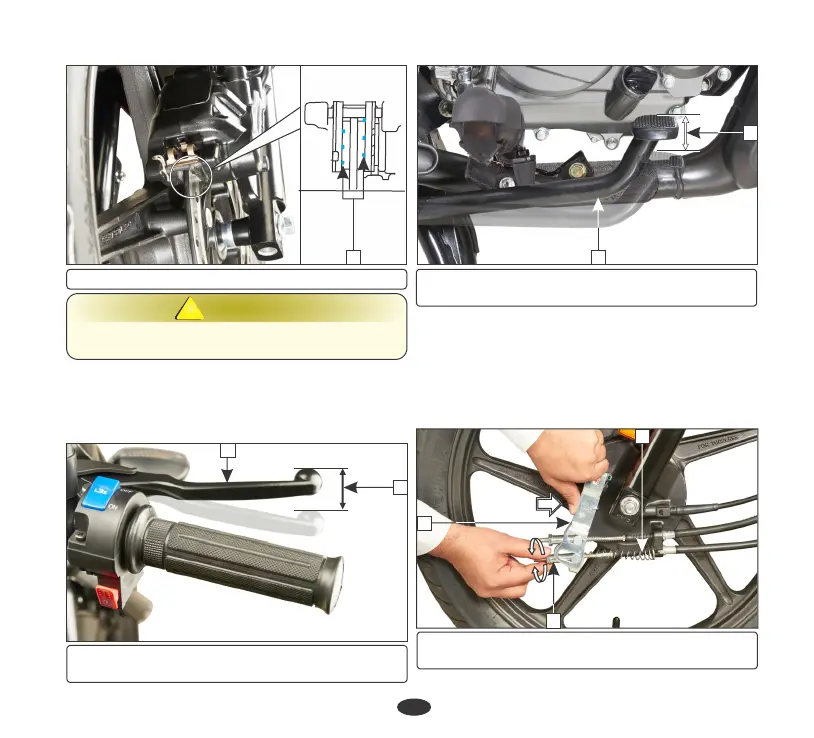

(d) Front brake inspection (Drum variant)
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
brake starts to engage is called free play (3).
1
(1) Front brake lever
(3) Free play: 10-20 mm
3
(2) Integrated/Rear brake pedal
(3) Free play: 20-30 mm
Front brake cable (A) on “F” side
Adjustment
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
A
4
5
3
1
2
To Next Page
