CP : control panel, FC : frequency converter, SB : supply board, CB : cooling board, CC : control cable, LL : lid locking, BC : braking chopper,
BR : brake resistor, MR : mains reset
24/49
To carry out an offset compensation, measure the temperature directly on the
temperature sensor with a temperature measuring device. Then enter the measured
value in the display and save it.
Each correction must be confirmed by the key.
Requirements: 1. Rotor has stopped.
2. LL is open.
3. Mains switch is OFF.

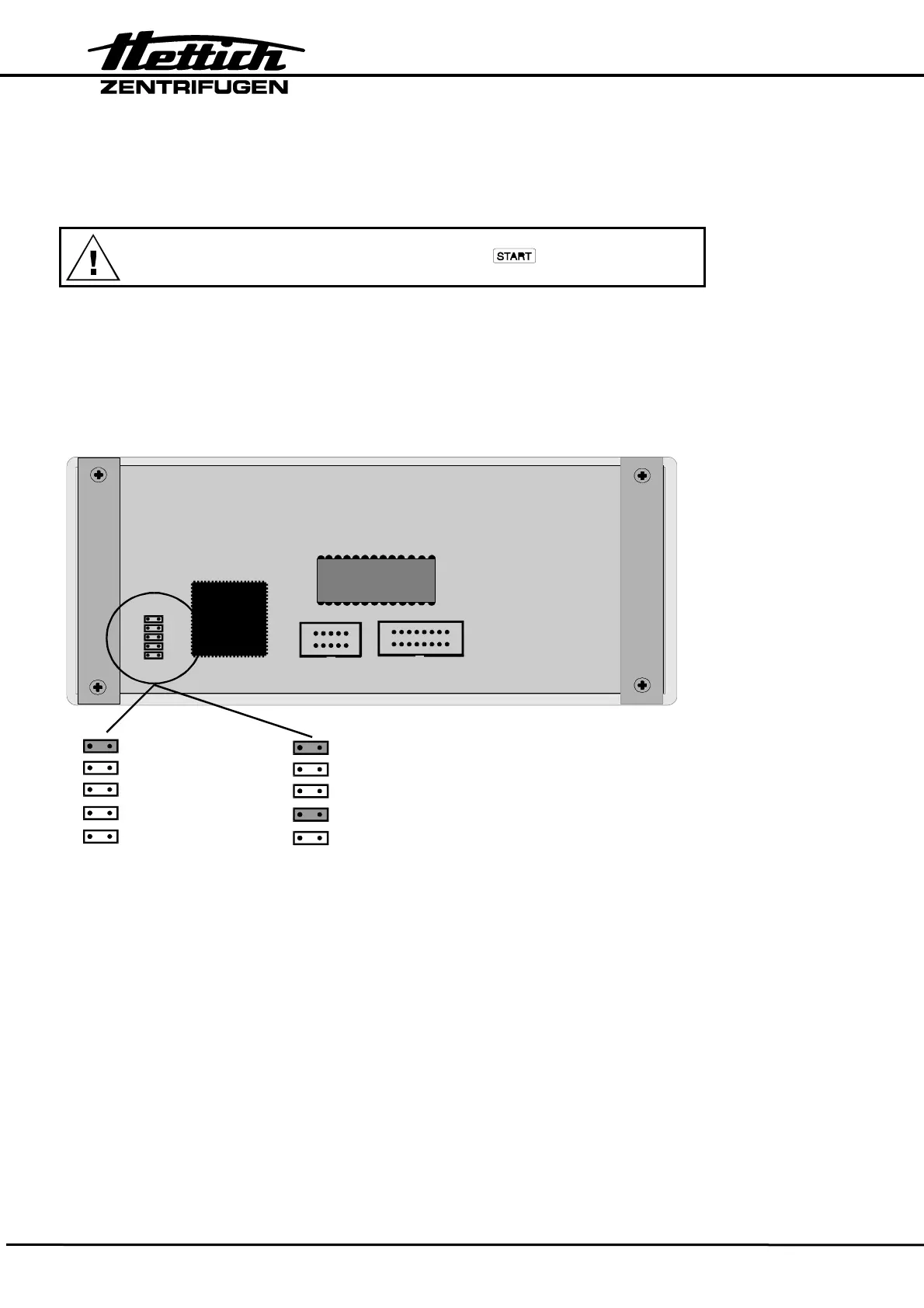

4. Plug on coding strip X3 at the CP the jumper from slot 0 to slot 3
(OFFSET position).
0
1
3
2
4
0
1
3
2
4
X3
Offset-Mode
Werkseinstellung
Factory setting
5.4.1. OFFSET value
The OFFSET value is the difference between the actual temperature and the sensor
temperature.
Example: Actual temperature - Sensor temperature = OFFSET value
25.5 °C - 27.0 °C = -1.5 °C
