CP : control panel, FC : frequency converter, SB : supply board, CB : cooling board, CC : control cable, LL : lid locking, BC : braking chopper,
BR : brake resistor, MR : mains reset
22/49

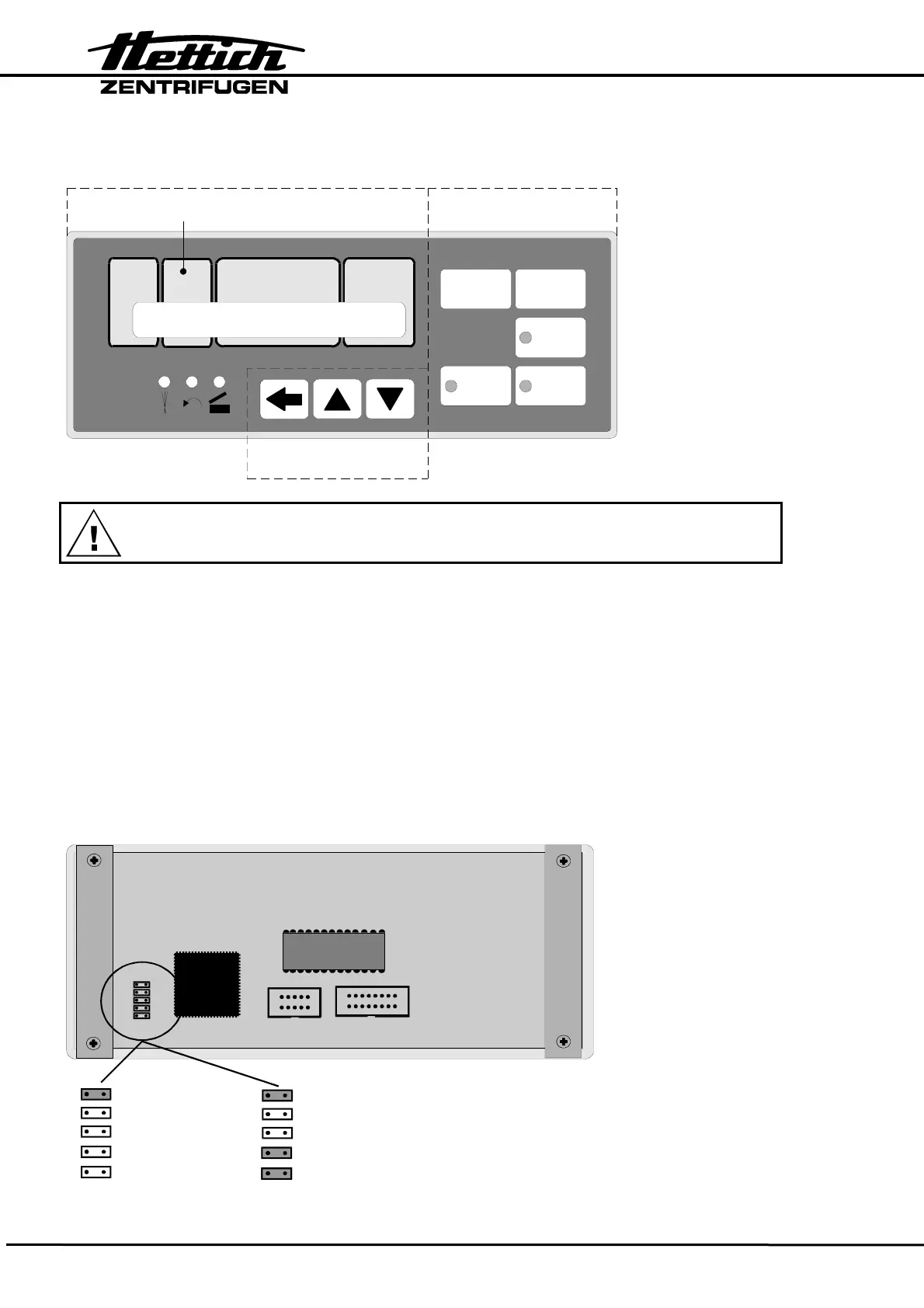

5. Factory setting
5.1. Control panel
START
RCF
IMPULS
STOP
T / °C
>RCF<
RPM
t / min:s
PROG
T / °CT / °CT / °CPROG
(Only in a cooled
centrifuge)
Display field
Control field
Entry field
.
The EPROM of the CP must, in all circumstances, correspond to the
machine version and the cooling version.
5.2. Procedure for initialisation
An initialization must be carried out:
• after replacing the FC.
The frequency converter must be adjusted to the centrifuge.
Requirement: 1. Rotor has stopped.
2. LL is open.
3. Mains switch is OFF.
4. Plug on coding strip X3 on the CP each a jumper in slot 3 and
4 (initialization position).
0
1
3
2
4
0
1
3
2
4
X3
Werkseinstellung
Factory setting
Initialisierungs-Mode
Initialization-Mode
