Hettich UNIVERSAL 32 R User Manual

32/49

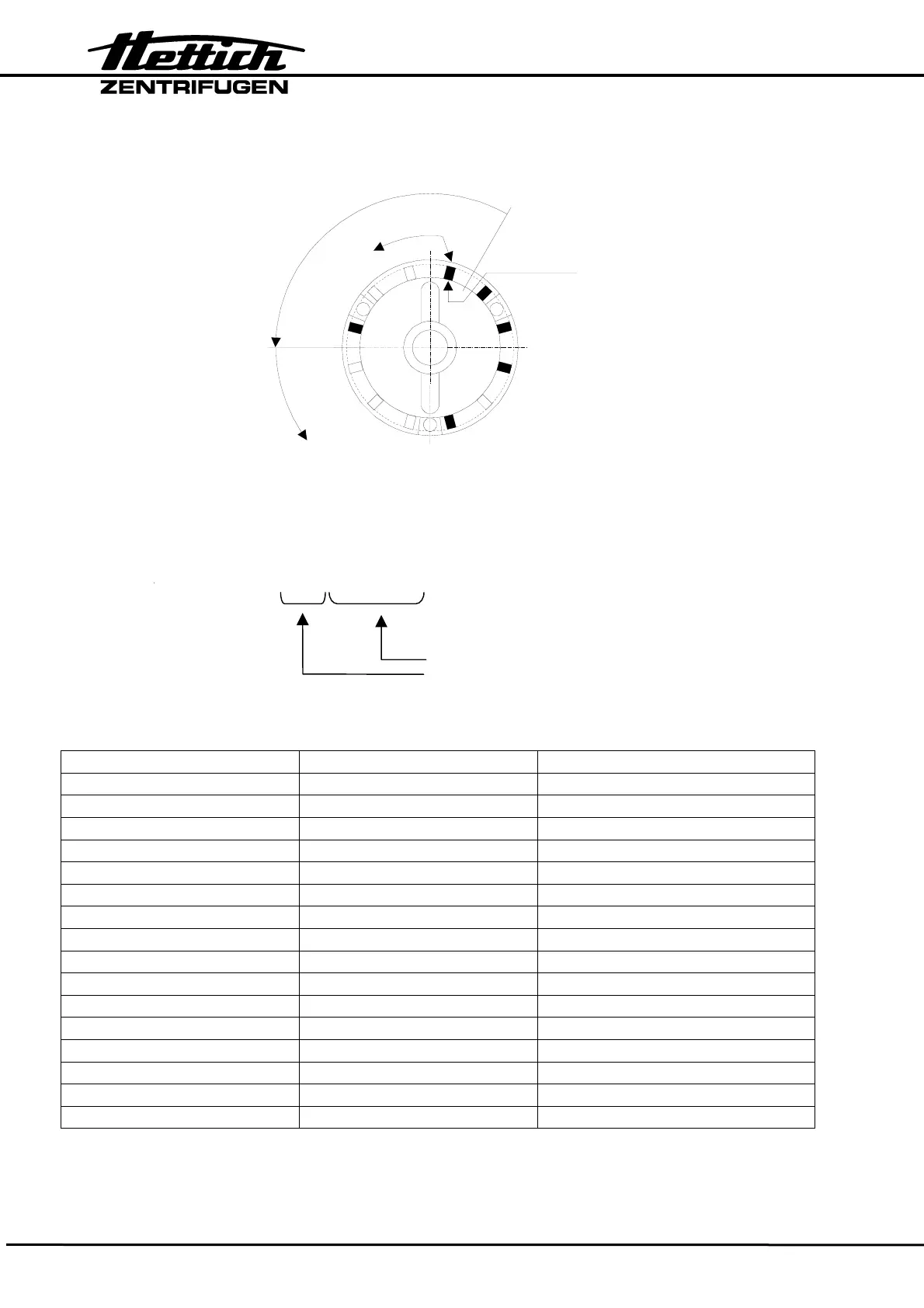

10. Tacho code configuration UNIVERSAL 32 / 32 R
Example: tachometer code no. 1
tachometer code determines:
1. maximum speed of rotor
2. run up and braking ramps
3. control response of electronics
START-STOP
combination
Information
START
North Pole
Rotor viewed from underneat
h
.
e.g
Rotor 1624 1001 0001 0111
rotor code
Start / Stop combination
The begin of the Start / Stop combination is
marked with a white dot.
Tacho code-no. configuration rotor
0 1001 0000 1111
1 1001 0001 0111 1611, 1619, 1622, 1624, 1626
2 1001 0001 1011 1617 old, 1628
3 1001 0001 1101 1613
4 1001 0001 1110 1618, 1620A
5 1001 0100 0111 1615
6 1001 0101 0101 1614, 1653, 1689
7 1001 0101 0110 1612
8 1001 0101 1010 1645, 1648
9 1001 0110 0011 1650
10 1001 0111 0001 E778-01
11 1001 1000 0111 1399
12 1001 1000 1011 1617 new
13 1001 1000 1101
14 1001 1000 0011
15 1001 1100 0011 1620
This tacho code can be measured on plug X4 of the tacho sensor B3 ( see also section
"Connecting diagram and component layout supply board (SB)").
