Transport and storage
Storage conditions
3
1
2
1 Motor cover
2 Edge of the centrifuging
chamber
3 Bellows
■ Before transporting, fasten the transport lock and disconnect the device
from the mains socket.
■
The transport temperature must be between -20°Cand+60°C.
■
Humidity must not be condensing. Humidity must be between 10%and
80%.
■ Be aware of the weight of the device.
■
When transporting using a transport aid (e.g., a pallet truck), the trans-
port aid must be able to carry at least 1.6 times the transport weight of
the device.
■ Secure the device to prevent it tipping over and falling down during
transport.
■ Never transport the device sideways or upside down.
■
The device must be stored in the original packaging.
■ Only store the device in dry rooms.
■
The storage temperature must be between -20°Cand+60°C.
■
Humidity must not be condensing. Humidity must be between 10%and
80%.
4.2 Fastening the transport lock
Personnel:
■
Trained user
1.
Open the lid.
2.
For UNIVERSAL 320 R:
Check the bellows ( 3 ) underneath the motor cover for correct
seating.
The bellows ( 3 ) must be placed over the edge of the motor cover ( 1 )
and over the edge of the centrifuging chamber ( 2 ).
3.
Close the lid.
123
3
1
3
1
3
3
3
1
3

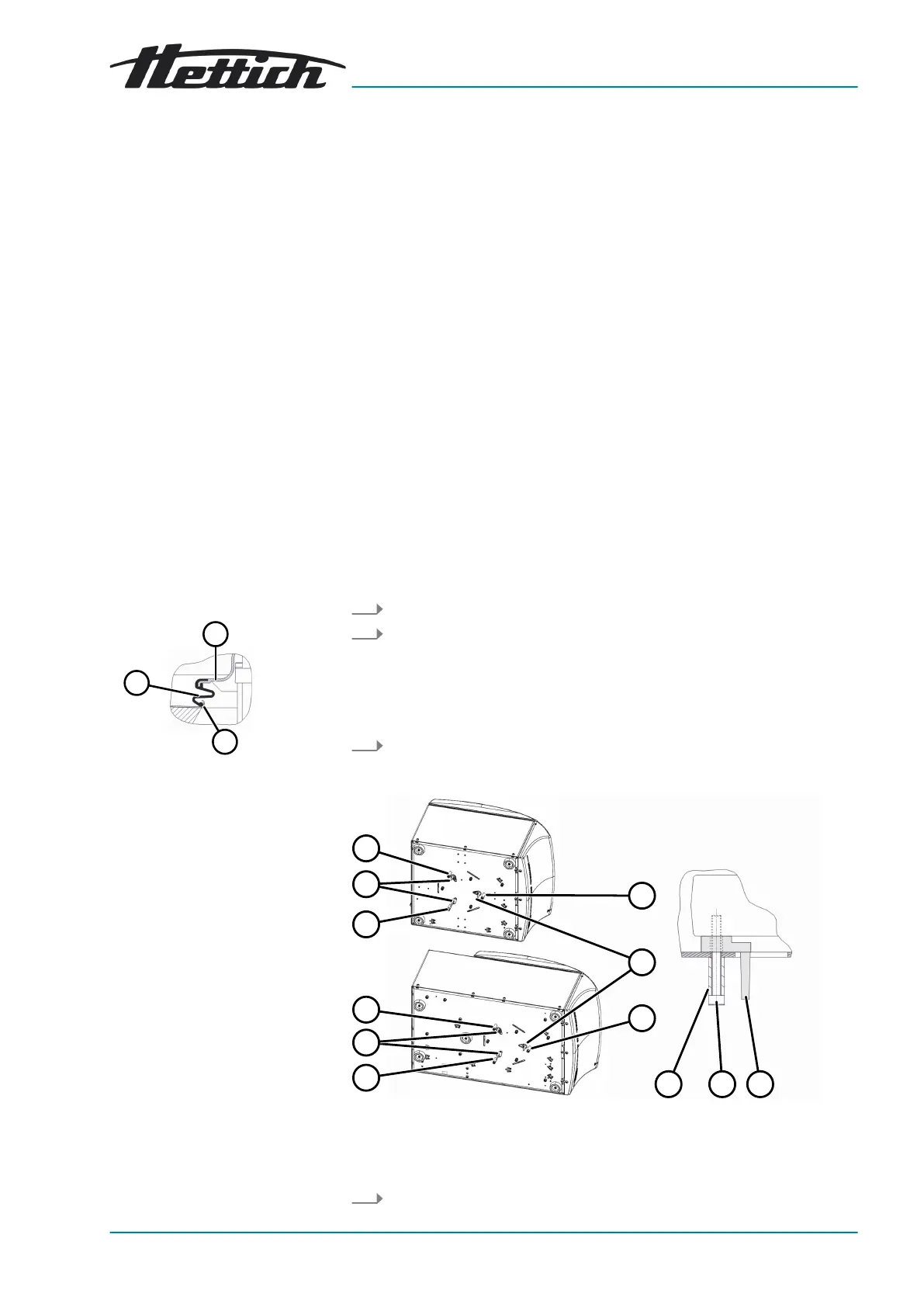

Fig. 13: Transport lock
1
Transport lock
2 Screw
3 Spacer sleeve
4.
Lay the device down on its right-hand side.
