Operation

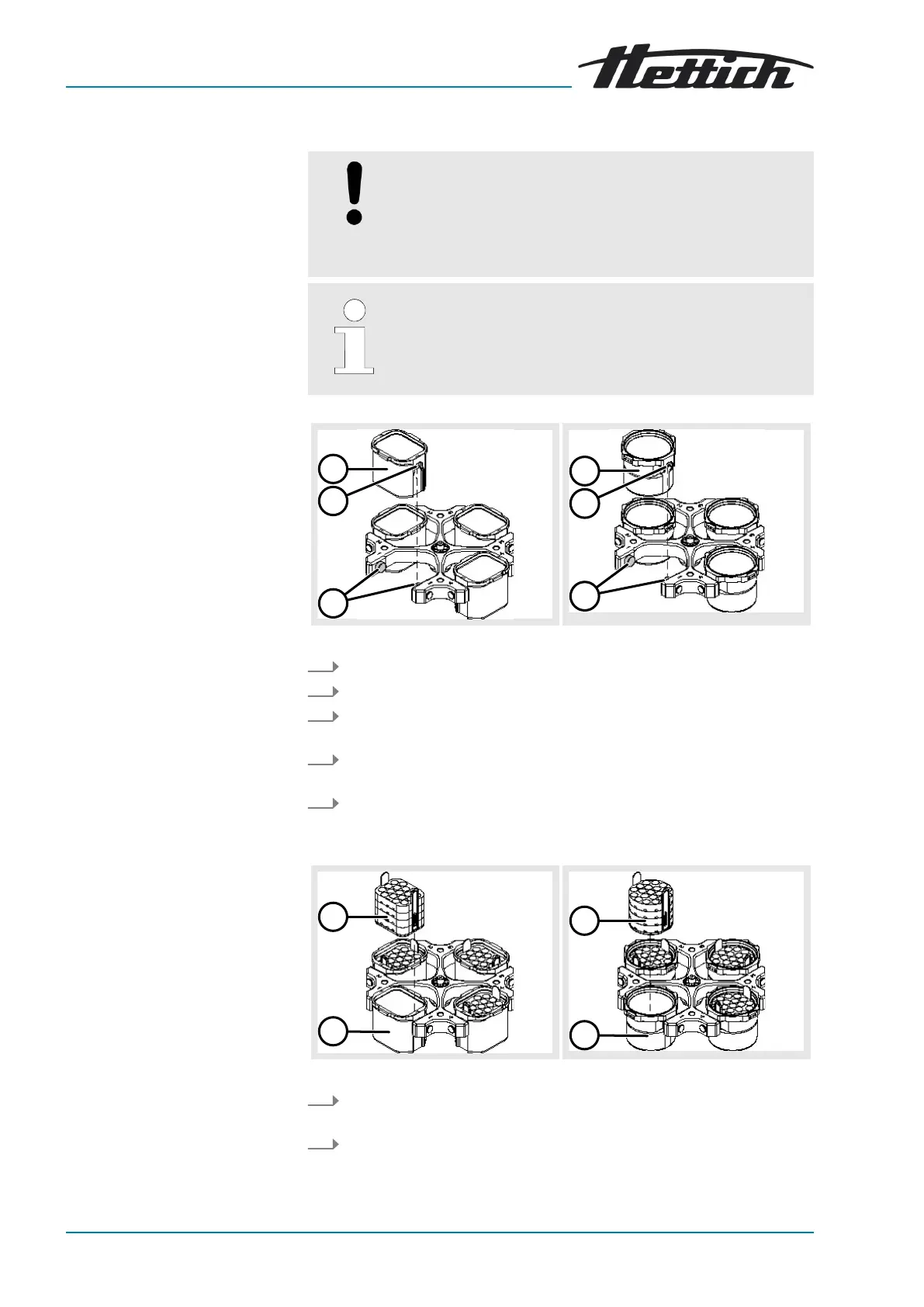

Inserting buckets
Removing the bucket
Inserting
the adapter
removing
6.3 Inserting and removing buckets
NOTICE
Damage to the device due to imbalances caused by incor-
rect loading of the rotor.
Load all swing-out rotor locations with the same
buckets.
Buckets marked with the number of the rotor location may
only be used there.
Buckets marked with a set number may only be used
together.
1
2
3
1
2
3
1.
Check that the rotor is rmly seated.
2. Grease the trunnions (3).
3. Insert the bucket (1) into the rotor from above. The trunnions (3) must
be in the grooves (2).
4. Push the bucket (1) down as far as it will go.
Pull the bucket (1) vertically upwards out of the rotor.
6.4
Inserting and removing adapters
1
2
1
2
Insert the adapter (1) vertically into the bucket (2) from above.
Remove the adapter (1) vertically upwards out of the bucket (2).
