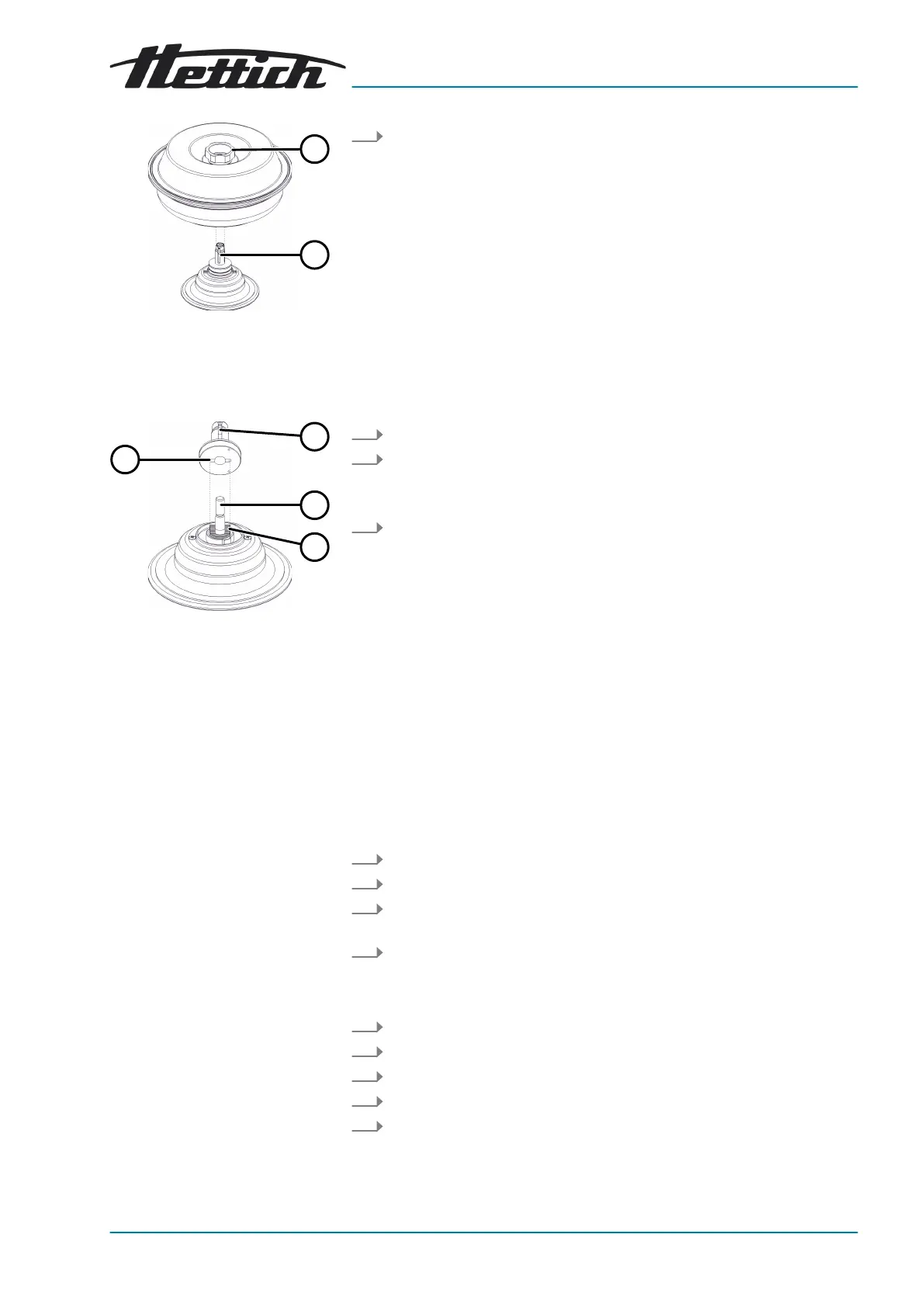

Fig. 16: Rotor installation and
removal
1 Rotary handle
2 Hub
Removing the hub
Fig. 17: Hub installation and
removal
1 Hub
2 Motor shaft
3 Driver
4 Groove
Installing the rotor without a
clamping nut
Installing the hub
Installing the rotor
Hold the rotor by the rotary handle (
1
) of the lid and lift it off the hub
(
2
).
1. Open the lid.
2. Unscrew the clamping nut.
🡆
After passing the working point for lifting the rotor, the hub (
1
)
detaches from the cone of the motor (
2
).
3.
Remove the hub.
Personnel:
■ Trained user
1. Open the lid.
2. Clean the motor shaft (
2
) and rotor hole.
3. Lightly grease the motor shaft (
2
), see ⮫
Chapter 8.2 ‘Cleaning and
disinfection instructions’ on page 36
.
4. Place the hub (
1
) vertically on the motor shaft (
2
).
The driver (
3
) of the motor shaft must be in the groove (
4
) of the hub.
Check that the hub is rmly seated.
5. Hand-tighten the clamping nut of the hub using the supplied hex key.
6. Check that the hub is rmly seated.
1. Clean the hub (
2
).
2. Lift the rotor by the rotary handle and place it vertically on the hub (
2
).
3. Push the rotor down as far as it will go.
