HIKVISION AX DS-PWA32-HSR - Keyfob Operations and Responses

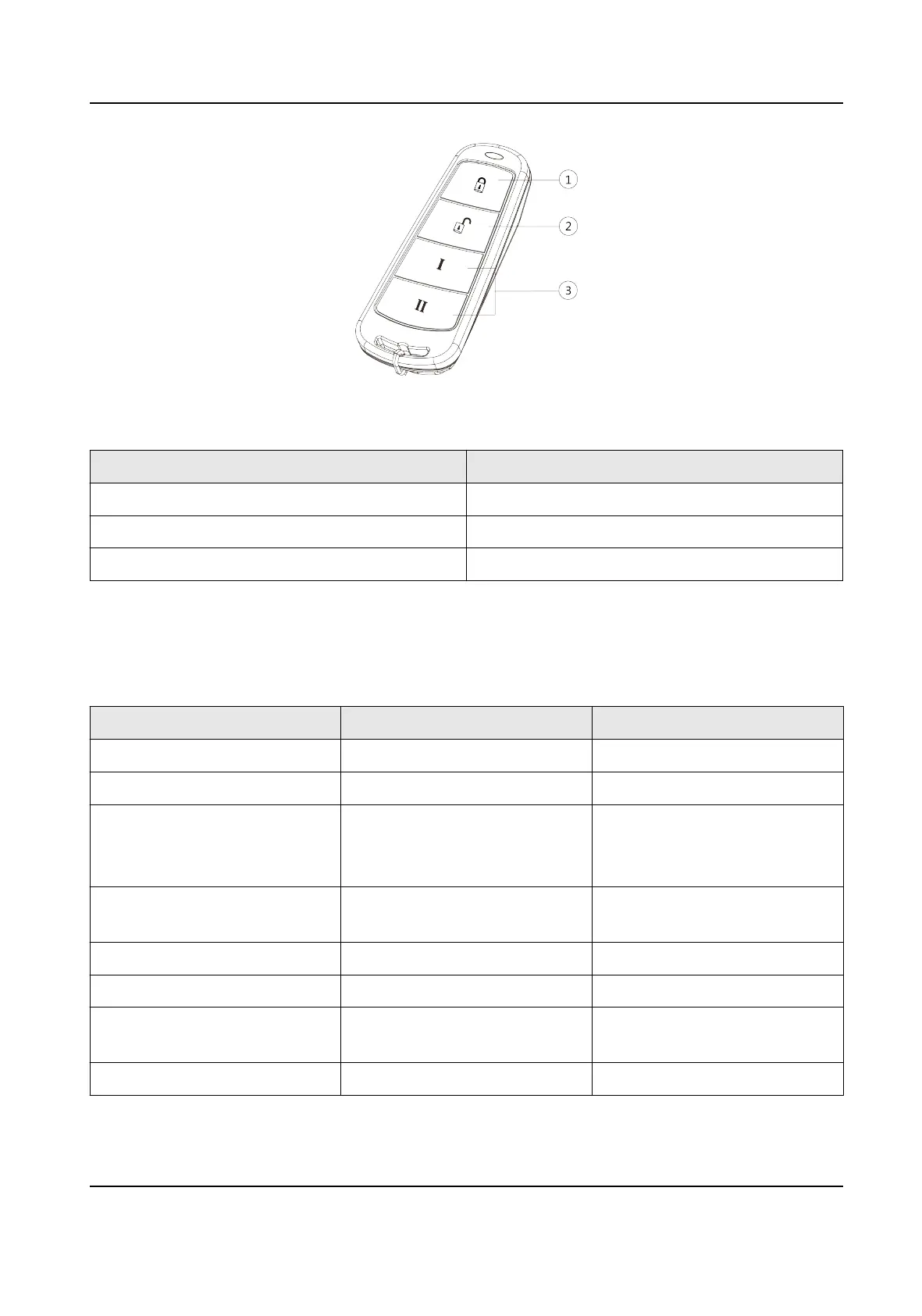

Figure 5-3 Type Ⅱ Keyfob
Table 5-2 Type Ⅱ Keyfob Keys
No. Descripon
1 Arming (Lock)
2 Disarming( Unlock)
3 Combo-Funcon Key
Custom Combinaon Funcons (except Arming +Ⅱ and Disarming +Ⅰ) : Away Arming, Stay
Arming, Disarming, Panic Alarm, Clearing Alarm, Fault Inspecon, and Arming Status Check.
The following table shows the keyfob
operaon and responded indicaons.
Table 5-3 Type
Ⅱ Keyfob Operaons and Indicaons
Keyfob Operaon Result Voice Prompt Indicaon
Armed Away/Stay Arming Red LED Flashes Once
Arming Failed Arming failed. Green LED Flashes Once
Arming Beep in the rst 5 seconds.
Fault prompt aer the beep for
fault occurring
Green LED Flashes 9 Times
No Arming Permission Operaon failed. The keyfob
has no arming permission.
Yellow LED Flashes 4 Times
Fault Checking Finished No Voice Prompt Yellow LED Flashes 4 Times
Alarm Cleared Alarm cleared Green LED Flashes Once
No Permission for Clearing
Alarm
Operaon failed. The keyfob
has no arming permission.
Yellow LED Flashes 4 Times
Disarmed Disarmed Green LED Flashes Once
