HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
36

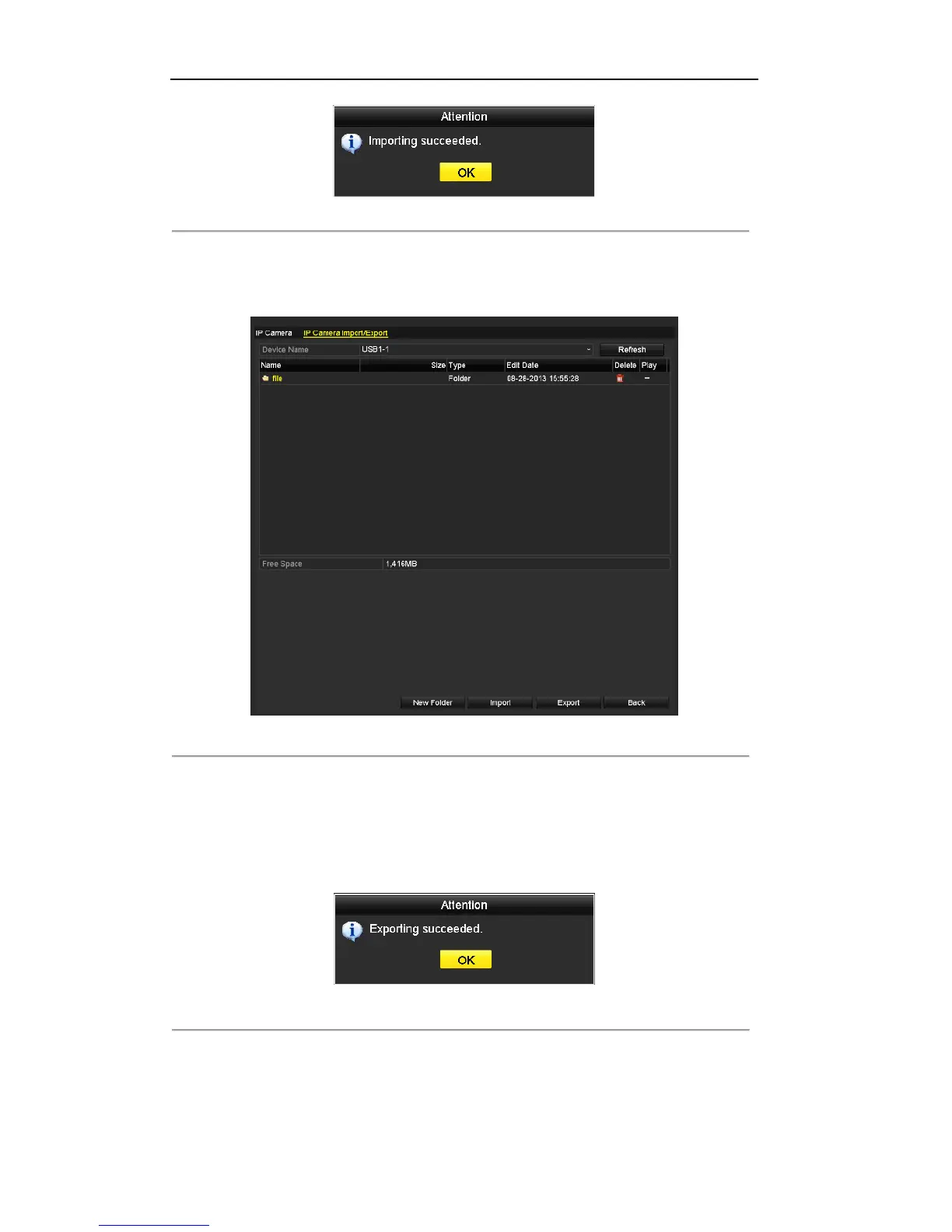

Figure 2.16 Attention-Importing Succeeded
Export the configuration file of IP cameras to backup device:
Connect the backup device on which the configuration file is stored to the device.
1) Click the IP Camera Import/Export tab.
Figure 2.17 Export IP Camera Configuration File
2) Select the backup device from the drop-down list. You can click the Refresh button to get the
latest information of the backup device.
3) Click the Export button to export the configuration file of IP cameras to the backup device.
4) Click OK on the pop-up message box after the exporting process is complete. The configuration
file of IP cameras will be displayed on a list.
Figure 2.18 Attention-Exporting Succeeded

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
