User Manual of DS-7200/7300/8100-SH Series DVR
68

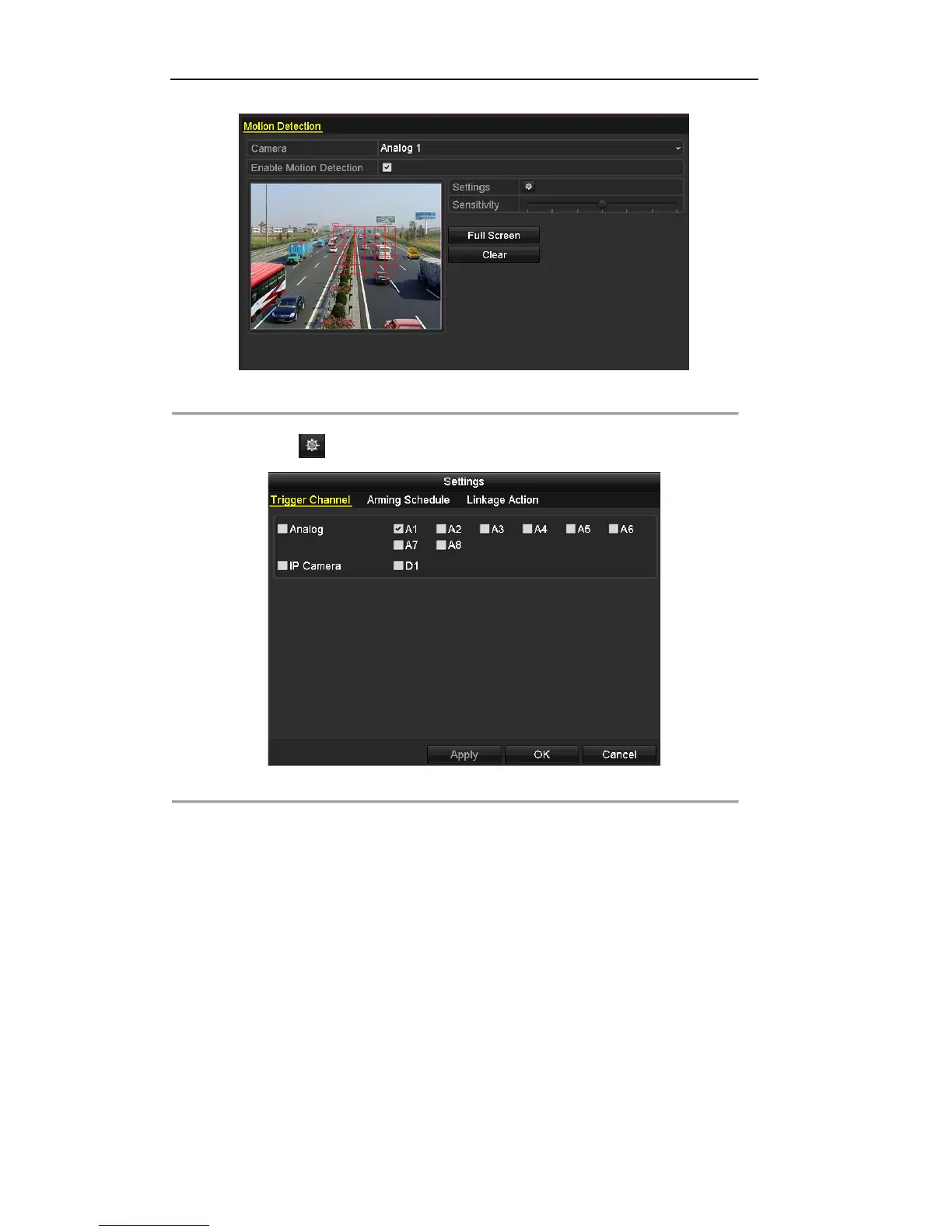

Figure 5.14 Motion Detection- Mask
4) Click the beside Settings and the message box for channel information will pop up.
Figure 5.15 Motion Detection Handling
Note: IP Camera is supported by HDVR series only.
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3. Enter Schedule settings interface.
Menu> Parameters> Schedule
