User Manual of DS-7200/7300/8100-SH Series DVR
69

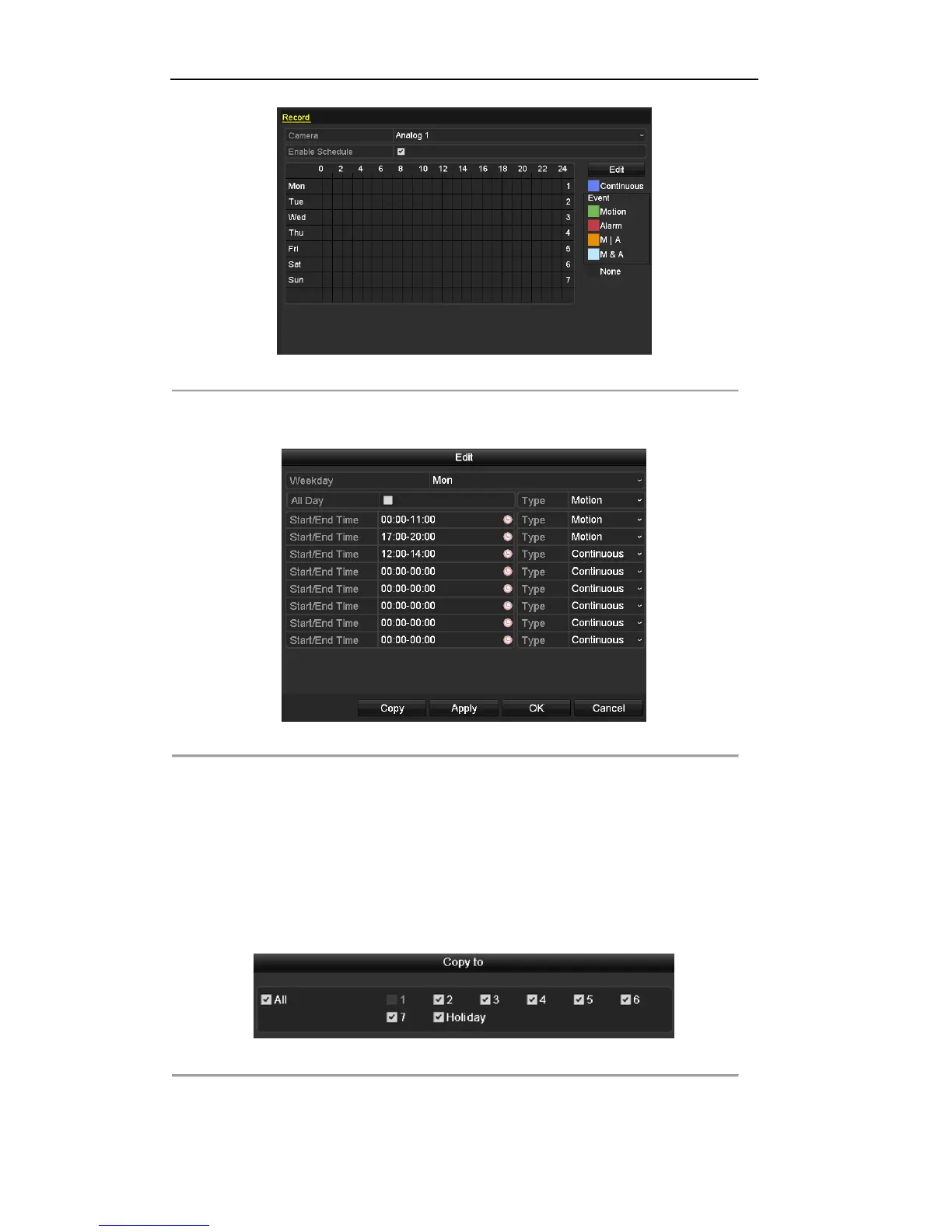

Figure 5.16 Record Schedule
1) Check the checkbox after the Enable Schedule item.
2) Click Edit.
Figure 5.17 Edit Schedule- Motion Detection
3) In the message box, you can choose the day to which you want to set schedule.
4) Set the Type as Motion.
5) To schedule an all-day recording, check the checkbox after the All Day item.
6) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Note: Up to 8 periods can be configured for each day. And the time periods can’t be overlapped
each other.
Repeat the above steps3)-6) to schedule motion detection triggered recording for all the week. If
the schedule can also be set to other days, click Copy.
Figure 5.18 Copy Schedule to Other Days
7) Click OK to back to upper level menu.
