User Manual of DS-7200/7300/8100 Series DVR
127
7.2 Managing Backup Devices
Management of USB flash drive, USB HDD and eSATA HDD.
The eSATA HDD is supported by DS-7300 and DS-8100 models only.
Steps:
1. Enter the Export interface of backup device. For details, see Chapter 7.1-7.2.

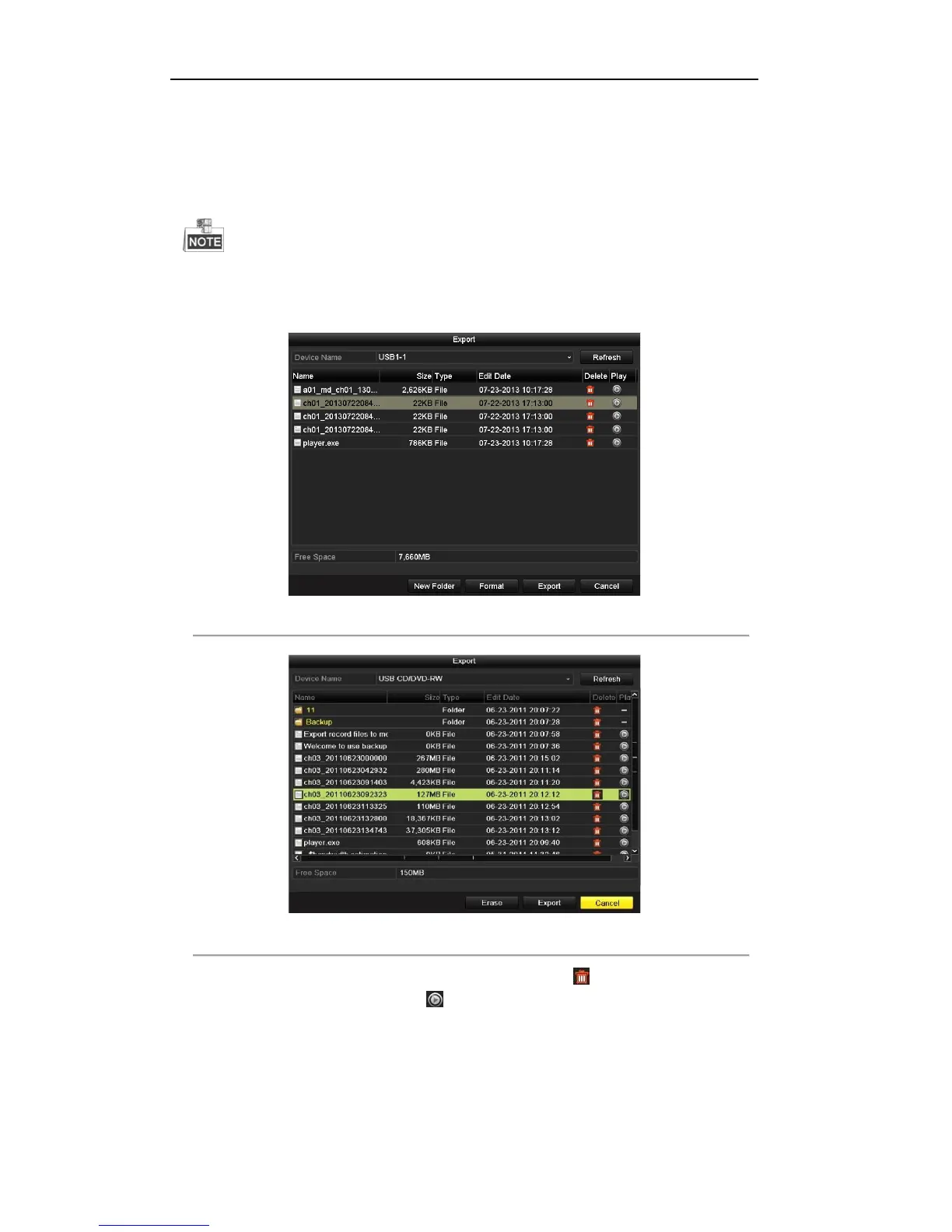

Figure 7. 17 Management of USB Flash Drives, USB HDDs and eSATA HDD
Figure 7. 18 Management of USB Writers and DVD-R/W
2. Select a record file/folder/picture in the backup device, click the icon , and you can delete it.
Select a record file/picture, click the icon , and then you can play and view the video/picture.
For USB Flash Drives, USB HDDs and eSATA HDDs:
Click the button New Folder, and you can create a new folder in the backup device.
Click the button Format, and you can format the backup device. Two kinds of file system can be
configurable, including FAT32 and NTFS.
For USB Writers and DVD-R/W:

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
