User Manual of DS-7200/7300/8100 Series DVR
96
5.9 Files Protection
Purpose:
You can lock the recorded files or set the HDD property to Read-only to protect the record files from being
overwritten.
Protect file by locking the record files:
Steps:
1. Enter Playback setting interface.
Menu> Export

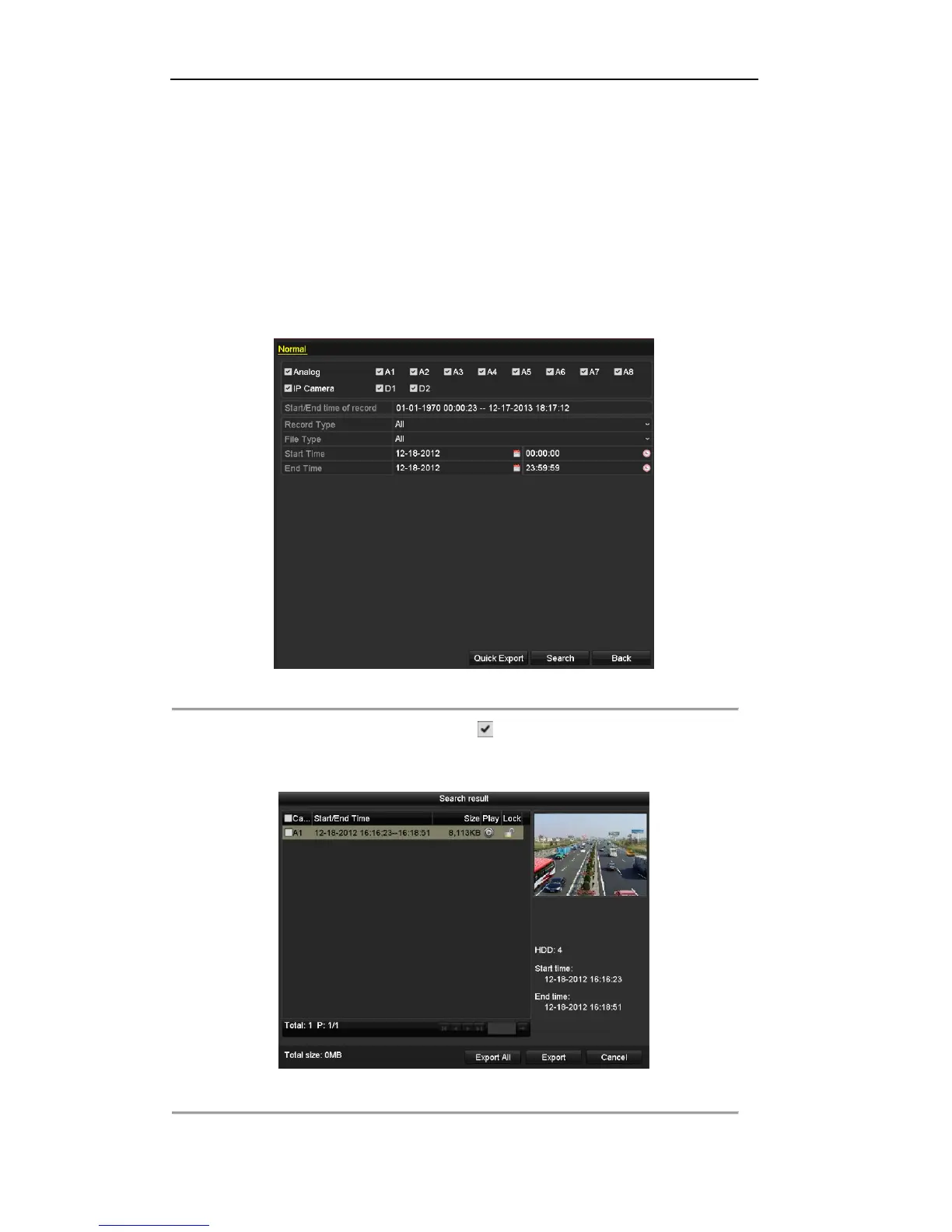

Figure 5. 36 Export
2. Select the channels by checking the checkbox to .
3. Configure the record type, file type and start/end time.
4. Click Search to show the results.
Figure 5. 37 Playback- Search Result

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
