HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
130

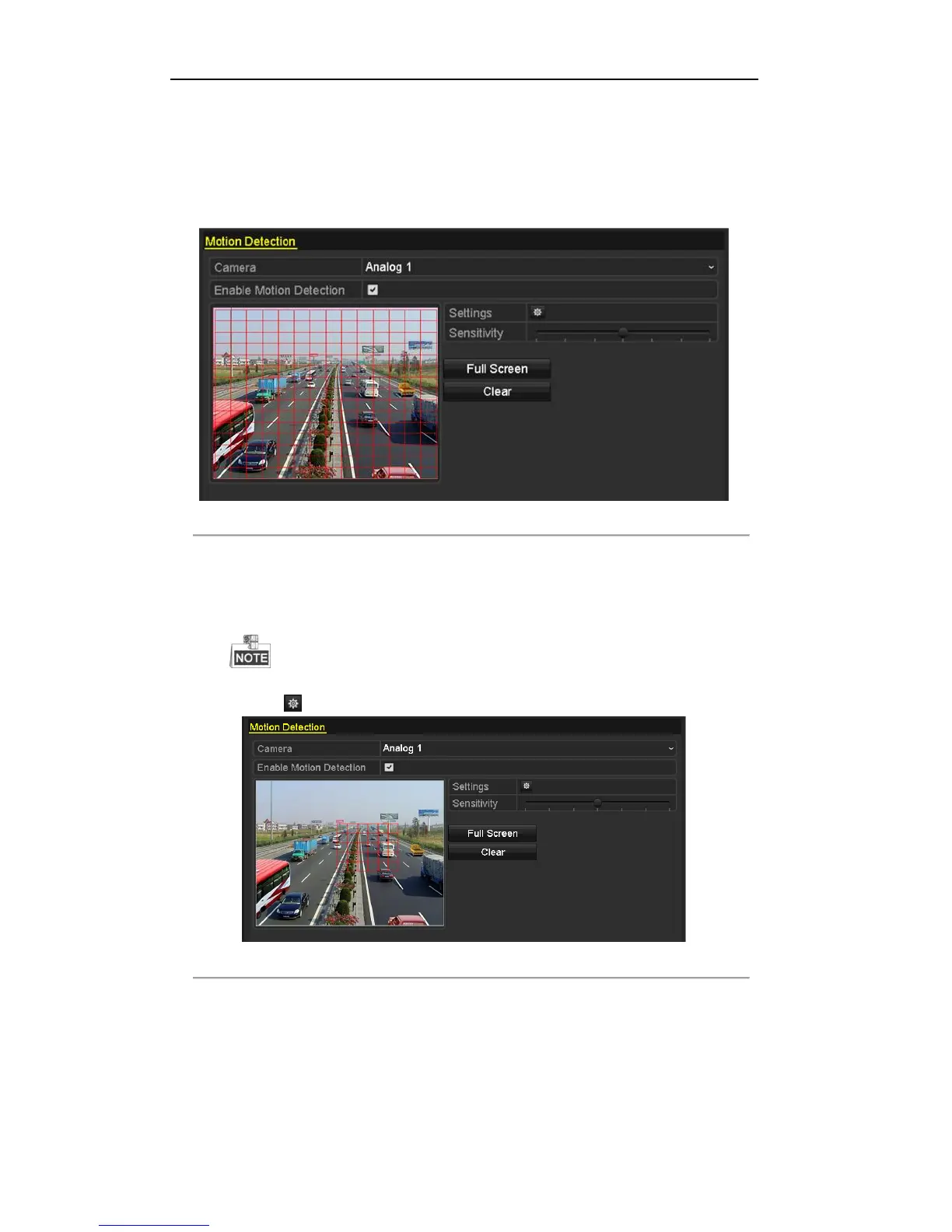

8.1 Setting Motion Detection
Steps:
1. Enter Motion Detection interface and choose a camera you want to set motion detection.
Menu> Camera> Motion
Figure 8. 1 Motion Detection Setup Interface
2. Set motion detection area and sensitivity.
1) Check the checkbox of Enable Motion Detection to enable motion detection, use the mouse to
draw detection area(s) and drag the sensitivity bar to set sensitivity. Please refer to Chapter 5.3
Configuring Motion Detection Record.
By default, the motion detection is enabled and configured in full screen.
2) Click the icon of Settings to set alarm response actions.
Figure 8. 2 Set Detection Area and Sensitivity
3. Click Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when motion alarm is triggered.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
