User Manual of DS-7200/7300/8100 Series DVR
200
13.1 Configuring General Settings
Purpose:
You can configure the BNC output standard, VGA/HDMI output resolution, mouse pointer speed, etc.
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Select the General tab.

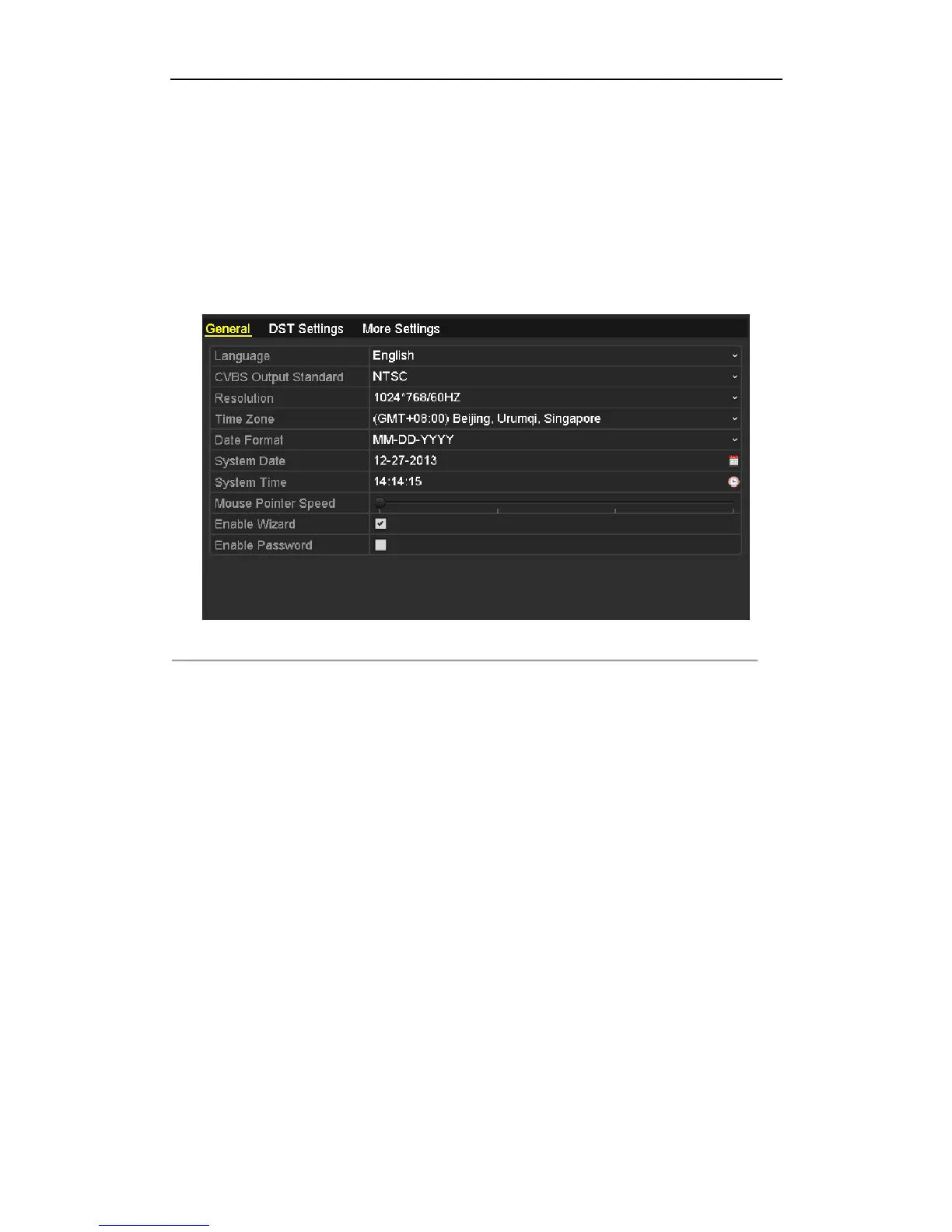

Figure 13. 1 General Settings Interface
3. Configure the following settings:
• Language: The default language used is English.
• CVBS Output Standard: Select the CVBS output standard to NTSC or PAL, which must be the
same with the video input standard.
• Resolution: Select the VGA/HDMI output resolution, which must be the same with the resolution
of the monitor screen.
• Time Zone: Select the time zone.
• Date Format: Set the date format.
• System Date: Select the system date.
• System Time: Set the system time.
• Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
• Enable Wizard: Enable/disable the Wizard when the device starts up.
• Enable Password: Enable/disable the use of the login password.
4. Click the Apply button to save the settings.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
