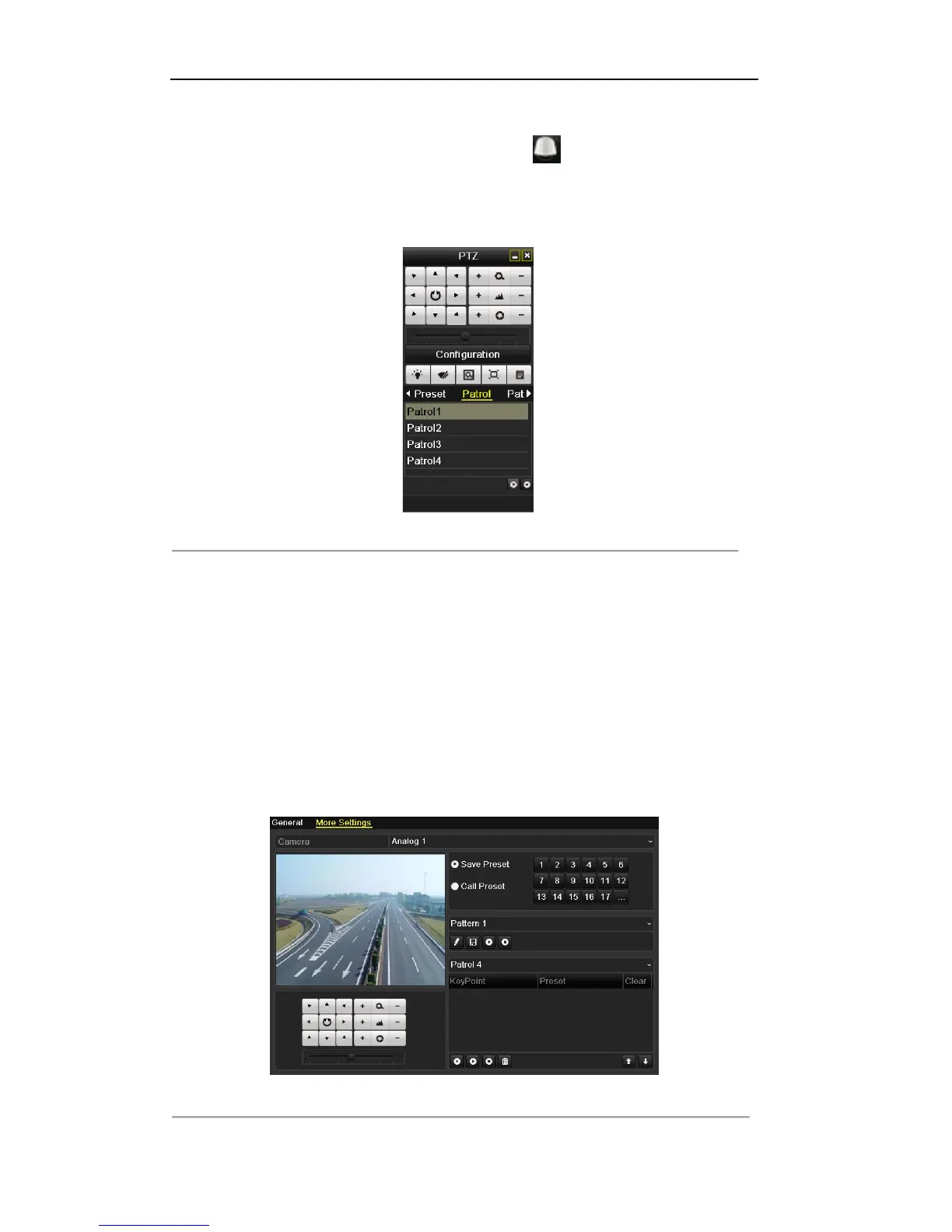

User Manual of DS-7200/7300/8100 Series DVR
59
Steps:
1. Press PTZ control on the IR remote, or click PTZ Control icon on the quick setting toolbar, to
show the PTZ control toolbar.
2. Choose Patrol on the control bar.
3. Click the patrol you want to call.
Figure 4. 10 PTZ Toolbar- Call Patrol
Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ
movement according to the predefined path.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Choose pattern number in the option box.
Figure 4. 11 PTZ- Pattern

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7200 and is the answer not in the manual?

HIKVISION DS-7200 Specifications

General IconGeneral
Hard Disk1 SATA interface
Video Input4/8/16 channels
Video Output1 HDMI, 1 VGA
Audio Output1 channel, RCA
HDD CapacityUp to 6TB
Network ProtocolsTCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface1 RJ45 10M/100M adaptive Ethernet interface
USB Interface2 USB 2.0
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Video CompressionH.264+
Encoding Resolution1080p/720p/4CIF/CIF
