User Manual of DS-7200/7300/8100 Series DVR
156

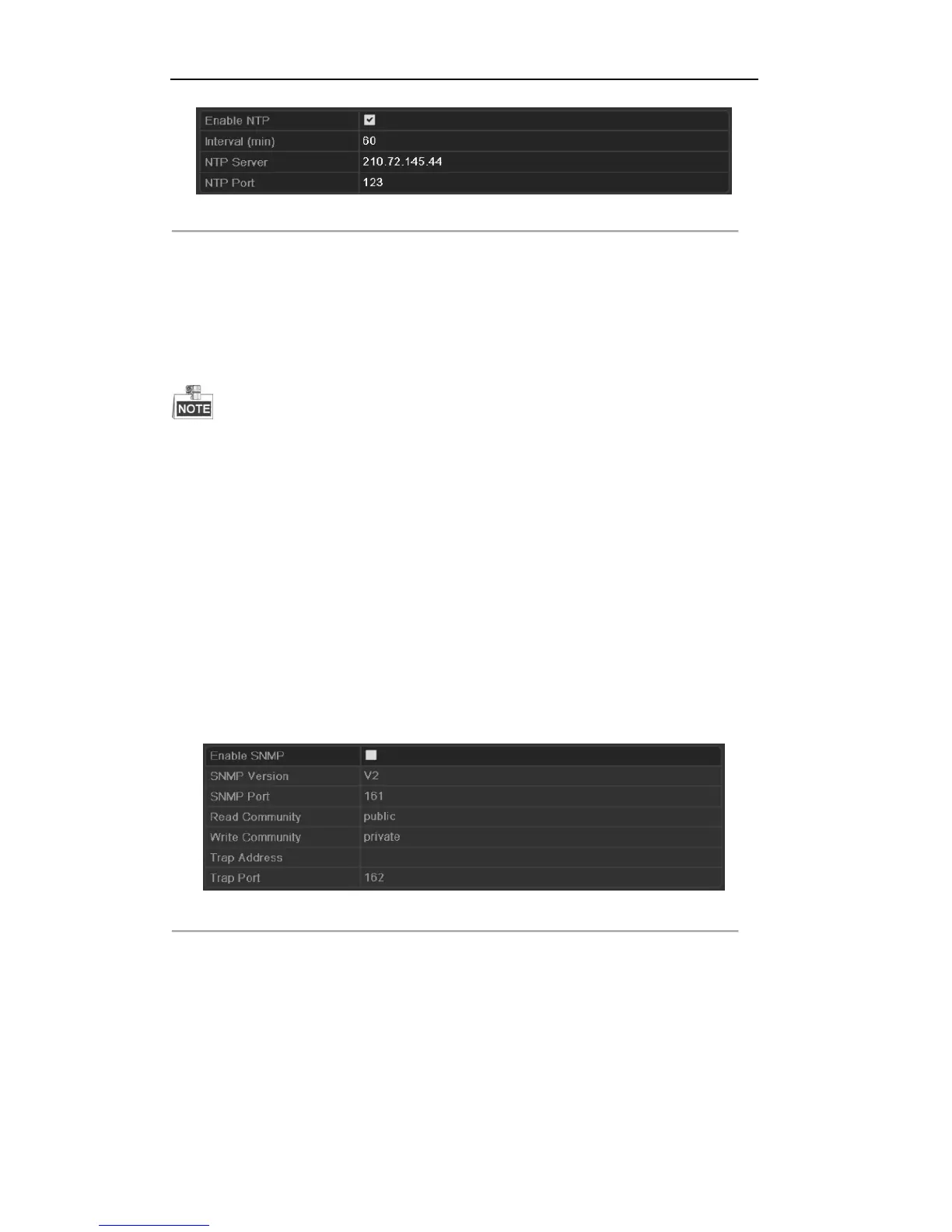

Figure 9. 18 NTP Settings Interface
3. Check the Enable NTP checkbox to enable this feature.
4. Configure the following NTP settings:
• Interval: Time interval between the two synchronizing actions with NTP server. The unit is minute.
• NTP Server: IP address of NTP server.
• NTP Port: Port of NTP server.
5. Click the Apply button to save and exit the interface.
The time synchronization interval can be set from 1 to 10080min, and the default value is 60min. If the device
is connected to a public network, you should use a NTP server that has a time synchronization function, such
as the server at the National Time Center (IP Address: 210.72.145.44). If the device is setup in a more
customized network, NTP software can be used to establish a NTP server used for time synchronization.
9.2.4 Configuring SNMP
Purpose:
You can use SNMP protocol to get device status and parameters related information.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the SNMP tab to enter the SNMP Settings interface.
Figure 9. 19 SNMP Settings Interface
3. Check the SNMP checkbox to enable this feature.
4. Configure the SNMP settings.
To Next Page
